What is a semi symmetrical airfoil?
What is a semi symmetrical airfoil?
Semi-symmetrical airfoils have some airfoil shape on the bottom but a lot less than on the top. They use a little Bernoulli and a lot of Newton to develop lift. These airfoils develop more lift than symmetrical ones but a lot less than flat-bottomed airfoils. They also sacrifice some aerobatic performance.
What is the most stable wing design?
The elliptical wing is aerodynamically most efficient because elliptical spanwise lift distribution induces the lowest possible drag.
What are symmetrical airfoils good for?
In the region of the ailerons and near a wingtip a symmetric airfoil can be used to increase the range of angles of attack to avoid spin–stall. Thus a large range of angles can be used without boundary layer separation. Subsonic airfoils have a round leading edge, which is naturally insensitive to the angle of attack.
What airfoil shape is best?
The most efficient airfoil for producing the greatest lift is one that has a concave or “scooped out” lower surface. As a fixed design, this type of airfoil sacrifices too much speed while producing lift and is not suitable for high-speed flight.
What is a symmetrical wing?
On the other hand, symmetrical wings (airfoils) have no aerodynamic camber, but rather have equal distances for the air to travel over both the top and bottom surfaces. This means they will produce exactly zero lift at zero AOA, and require some angle to produce lift.

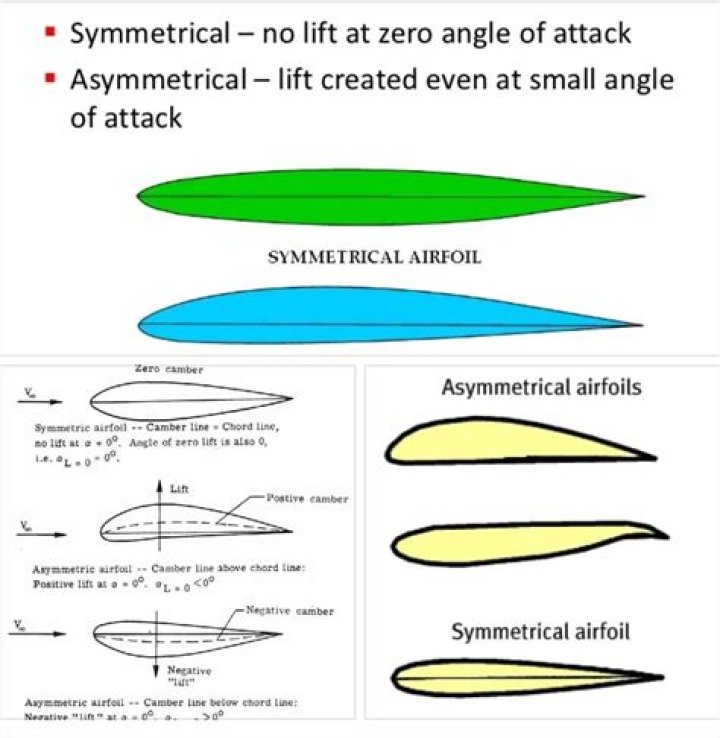

What is symmetric and asymmetric airfoil shape?
Some airfoils are curved differently on the top side than on the bottom. Those airfoils are asymmetrical, because their two sides are differently shaped. Other airfoils are shaped the same on both sides, so they’re symmetrical. The symmetrical airfoil is distinguished by having identical upper and lower surfaces.
What are the four types of wings?
There are four general wing shapes that are common in birds: Passive soaring, active soaring, elliptical wings, and high-speed wings.
Do symmetrical airfoils produce lift?
A symmetrical airfoil will generate zero lift at zero angle of attack. But as the angle of attack increases, the air is deflected through a larger angle and the vertical component of the airstream velocity increases, resulting in more lift.
Why are symmetrical wings used?
Therefore, the precision required of aerobatic performers means that symmetrical airfoils are best. These balanced wings slice through the denser low air more evenly than asymmetrical airfoils. This shape also makes trimming, or making counteractive measures against airplane aerodynamics, less of a hassle.
What is a symmetrical airfoil?
An airfoil that has the same shape on both sides of its centerline (the centerline is thus straight). The movement of the center of pressure is the least in this type of airfoil.
What are symmetrical wings used for?
Symmetrical wings are best used for aerobatic aircraft. Aerobatic aircraft need to generated lift even while spinning and going inverted or upside down.
