What is a test charge?

What is a test charge?

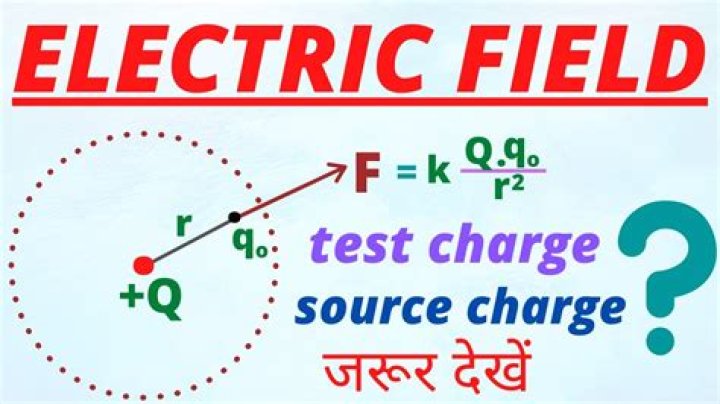

A test charge is a vanishingly small positive charge that is used to detect the presence of an electric field. The test charge should be as small as possible so that its presence does not affect the electric field due to the source charge. The electric charge that produces the electric field is called a source charge.

What is the electric potential between two opposite charges?

Since the charges have equal magnitude and the distance from each to the mid point is the same, the magnitude of the potential energy contributed by each charge is the same, but the signs are opposite, so the net potential energy should be zero.

What is the difference between point charge and test charge?

a point charge is the one with dimensions so much smaller than the other dimensions appearing in the problem so that they can be ignored; while a test charge is the one which is used to test the effect of an electric field.

What is the direction of the force on the test charge due to the two other charges?

The thing to keep in mind is that the force above is acting on the test charge Q, in the positive radial direction as defined by the original charge q. This means that because the charges are both positive and will repel one another, the force on the test charge points away from the original charge.

What are the two properties that a test charge must have?

What are the two properties that a test charge must have? (21.1) The test charge must be small in mag- nitude relative to the magnitudes of the charges producing the field and be positive.

Why are test charges used?

A test charge is used to determine the direction of the field, but it doesn’t change the field. If you use a positive test charge, the force points in the direction of the field; if you use a negative test charge, the force opposes the field. The direction of the field doesn’t change.

When a test charge is brought in from infinity?

Even we can conclude with the diagram that P is equally distant from M and N and it is an electric dipole therefore the charges will be equal and opposite and therefore potential will be zero. Hence work done in bringing a charge from infinity to the center of dipole will be zero.

Why is the potential energy of two opposite charges negative?

“Potential energy” is defined as the negative of the work done by a conservative force (and the electric force is conservative). Work is the scalar-product of force and displacement: as two opposite charges move apart, the attractive force and displacement are oppositely directed, so their scalar product is negative.

What is the point charge source charge and test charge?

A test charge is a point charge that does not disturb any field.It is a small electro positive charge used for experiments. Source charge-The charge which produce electric field and It is a large charge through which electric fields flow.It may be a point charges,or a continuous distribution of charges.

What determines the direction of the electric force between two charges?

The direction of the force vector depends on the sign of the charges. If the charges are the same, the force points away from the other charge. If the charges have different signs, the force points toward the other charge((Figure)).

What happens to the electric force between two charges when the distance is tripled?

Explanation: The electrostatic force is directly related to the product of the charges and inversely related to the square of the separation distance. Tripling one of the charges would serve to triple the force. Tripling the distance would serve to reduce the force by a factor of nine.

What is test charge and its characteristics?

In physical theories, a test particle, or test charge, is an idealized model of an object whose physical properties (usually mass, charge, or size) are assumed to be negligible except for the property being studied, which is considered to be insufficient to alter the behavior of the rest of the system.
