What is a translation pattern

A translation pattern matches the dialed digits in a similar manner to the matching of a route pattern. The primary difference between route patterns and translation patterns is that translation patterns do not have a final call-routing destination (route list, gateway, or trunk).

What is a translation pattern Cisco?

The Cisco CallManager uses translation patterns to manipulate dialed digits before routing a call. In some cases, the system does not use the dialed number. In other cases, the public switched telephone network (PSTN) does not recognize the dialed number.

What is Route pattern?

A route pattern comprises a string of digits (an address) and a set of associated digit manipulations that route calls to a route list or a gateway. … They work in conjunction with route filters and route lists to direct calls to specific devices and to include, exclude, or modify specific digit patterns.

What is a translation pattern CUCM?

CUCM uses translation patterns to manipulate digits before forwarding a call. A translation pattern normally requires another digit analysis attempt. Translation patterns and route patterns can be used to block patterns, but the default action is to attempt call routing.

What is called party transform mask?

Transformations that modify the calling number (automatic number identification, ANI) are calling-party transformations; transformations that modify the dialed digits (dialed number identification system, DNIS) are called-party transformations. … If the number is longer than the mask, the mask obscures the extra digits.

What is SRST and MGCP fall back?

srst = Survivable Remote Telephony, when the IP Phone looses connectivity with cm, the phone registers with the default gateway. mgcp fallback = defines the fail over server in the call manager cluster.

What are the translations in math?

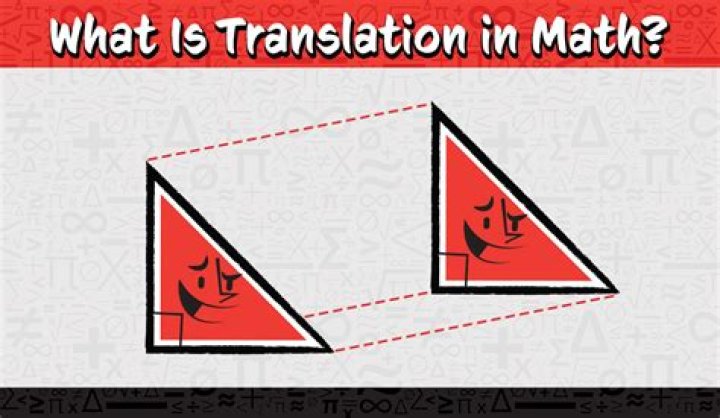

Translation is a term used in geometry to describe a function that moves an object a certain distance. The object is not altered in any other way. It is not rotated, reflected or re-sized. … In a translation, every point of the object must be moved in the same direction and for the same distance.

What is CSS CUCM?

In CUCM, call permissions are defined by using the constructs of partition and CSS. … A CSS can contain one or more partitions. A CSS can be assigned to anything that can originate a call, such as a line, phone, gateway, trunk or even a translation pattern.

What is the difference between transformation and translation?

A translation moves a shape up, down or from side to side but it does not change its appearance in any other way. … A transformation is a way of changing the size or position of a shape. Every point in the shape is translated the same distance in the same direction.

What is partition and CSS?

A partition is a group of dialable patterns with similar accessibility. … A CSS defines which partitions are accessible to a particular device. A device can call only those call-routing table entries located in partitions that are part of the CSS assigned to the device.

Article first time published on

How do I create a translation pattern in CUCM?

To configure a translation pattern, navigate to Call Routing > Translation Pattern, as shown in Figure 12-12. The translation pattern identifies the dialed digit string to match and the calling- or called-party transformation settings that should be applied.

What is a Dial Plan Cisco?

The dial plan is one of the most important components of a Unified Communications system. It is an integral part of all call processing agents. Generally, the dial plan is the decision maker and instructs the call processing agent on how to route the calls.

What is call routing in telecommunication?

Call routing is a call management feature for business phone systems where each incoming call is placed in a queue and is then routed to a specific person or group of people based on pre-established rules and criteria. Call routing occurs before someone on the receiving end picks up the call.

What is transformation pattern?

Transformation patterns determine how the system manipulates the digits that were dialed in an incoming or outgoing call. You can configure transformation patterns when you need to change the calling or called number before the system sends it to the phone or the PSTN.

What is external phone number mask?

The external phone number mask is a directory number (DN) configuration attribute. The external phone number mask is leveraged in call routing to manipulate the internal directory number to digits that can be routed over the PSTN.

What is translation with example?

The definition of a translation is an interpretation from one language or situation to another. An example of a translation is “bueno” meaning “good” in Spanish. An example of a translation is telling a parent the meaning behind their teen’s facial expression.

What is the translation formula?

A translation is a function that moves every point a constant distance in a specified direction. A vertical translation is generally given by the equation y=f(x)+b y = f ( x ) + b .

What is Call Manager fallback?

MGCP fallback enables a gateway to act as local call control when the CUCM server to which the remote site phones and gateway register is offline or WAN connectivity is lost (in which case, Cisco Unified SRST kicks in and offers call control functionality).

What is Srst in Cisco?

Survivable Remote Site Telephony (SRST) is a Cisco Unified Communications Manager (CUCM) call processing backup mechanism that allows Cisco IP phones to register to a Cisco router.

How do I enable Srst on Cisco router?

From Cisco Unified CM Administration, choose System > Device Pool.
Click Find and choose the device pool to which the remote IP phones are registered.
In the Roaming Sensitive Settings area, choose the SRST reference from the SRST Reference drop-down list. …
Click Save.

How do you write a translation?

Keep sentences brief. …
Use Standard English word order whenever possible. …
Avoid long noun strings. …
Use just one term to identify a single concept. …
Avoid humor. …
Be clear with international dates. …
Use relative pronouns like “that” and “which.”

How do you write a translation rule?

One notation looks like T(3, 5). This notation tells you to add 3 to the x values and add 5 to the y values.
The second notation is a mapping rule of the form (x,y)→(x−7,y+5). This notation tells you that the x and y coordinates are translated to x−7 and y+5.

Does a translation require a line of translation?

A translation takes a line to a parallel line or itself. … A translation requires a line of translation.

What is calling space CUCM?

A calling search space comprises an ordered list of route partitions that are typically assigned to devices. Calling search spaces determine the partitions that calling devices search when they are attempting to complete a call.

What is a partition CUCM?

Partition. A partition is a grouping of things with similar reachabliltiy characteristics. In general, you can think of a partition as being assigned to things you can dial, such as the following: Dialable numbers (DNs) Route Patterns.

What is Cisco CSS?

The Cisco CSS 11500 Series Content Services Switch enables businesses to simultaneously reduce costs by optimizing, scaling and securing data center, network, and application resources, which improves productivity of those resources, therefore offering a superior experience for customers, business partners, and …

What is device pool?

A device pool is a logical grouping of similar type of devices on which bots are run as work items from their respective queues. For example, you can group devices of a particular department/unit and create a device pool for it.

How many partitions we can create while using SCSI?

The total number of adressable primary and logical partitions in Linux on a scsi disk is 16. This is because of the flat device number addressing scheme that is used for devices.

What is a device pool in CUCM?

A device pool is configured with a name and a CUCM group. It includes roaming-sensitive settings and Device Mobility-related settings configured under Device Mobility Related Information.

How do I block a number on CUCM?

To block calls in the same manner at the Cisco CallManager level, use translation patterns. To do this, the DNIS or called number can be specified in a route pattern, then applied to the gateway. In this case, the “****” that is used to block the call is the Route or Block this pattern option.

Which type of digit manipulation is commonly required on outgoing PSTN calls?

Digit Manipulation is often used to change calling party numbers for caller ID purposes on outgoing PSTN calls. It is also used to strip PSTN access codes before CUCM routes calls to the gateway (PSTN).
