What is an ECG in simple terms?
What is an ECG in simple terms?
An electrocardiogram (ECG or EKG) measures the heart’s electrical activity. This can help doctors tell how the heart is working and identify any problems. The ECG can help show the rate and regularity of heartbeats, the size and position of the heart’s chambers, and whether there is any damage.
What is ECG and its principle?
The basic principle of the ECG is that stimulation of a muscle alters the electrical potential of the muscle fibres. Cardiac cells, unlike other cells, have a property known as automaticity, which is the capacity to spontaneously initiate impulses.
How do you explain an ECG to a patient?
Electrodes (small, plastic patches that stick to the skin) are placed at certain spots on the chest, arms, and legs. The electrodes are connected to an ECG machine by lead wires. The electrical activity of the heart is then measured, interpreted, and printed out. No electricity is sent into the body.
What is ECG reading?
An ECG is simply a representation of the electrical activity of the heart muscle as it changes with time, usually printed on paper for easier analysis. Like other muscles, cardiac muscle contracts in response to electrical depolarisation of the muscle cells.
How ECG is produced?
What are the components of an ECG?

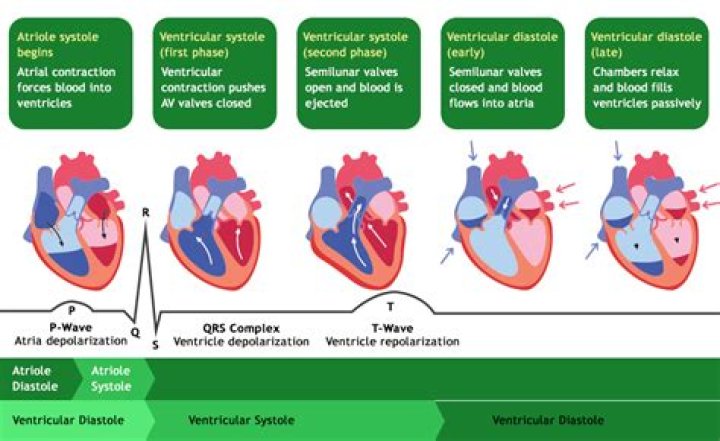

There are three main components to an ECG: the P wave, which represents the depolarization of the atria; the QRS complex, which represents the depolarization of the ventricles; and the T wave, which represents the repolarization of the ventricles.
What is the purpose of ECG?
An electrocardiogram (ECG) is a simple test that can be used to check your heart’s rhythm and electrical activity. Sensors attached to the skin are used to detect the electrical signals produced by your heart each time it beats.
What are the components of ECG machine?
What are the graphic views of the heart that are produced by an ECG?
The 12-lead ECG is a graphic representation of the electrical activity of the heart on two planes. The six limb leads (I, II, III, aVR, aVL, and aVF) provide a view of the heart from the edges of a frontal plane as if the heart were flat.
How do you identify an ECG?
The ECG is measured by placing a series of electrodes on the patient’s skin – so it is known as the ‘surface’ ECG. The wave of electrical depolarisation spreads from the atria down though the IVS to the ventricles. So the direction of this depolarisation is usually from the superior to the inferior aspect of the heart.
