What is an N6 surface finish?
What is an N6 surface finish?
N6 = 0.8mm (micro.m) Fine lapped surfaces….
What does Um mean in surface finish?
SURFACE FINISH COMPARISON CHART The term Micro means millionth. So 1 micrometer is 1 millionth of a meter, or . 000001 meter.
What is a 63 Ra surface finish?
A. Larry: A 125 Ra or RMS finish is what one normally considers a standard machined finish as opposed to a 250 which would be rough. On the other hand 63 would be fine, 32 cannot easily be obtained by machining and has to be ground, 16 absolutely has to be ground, etc.
What is the value of N7?

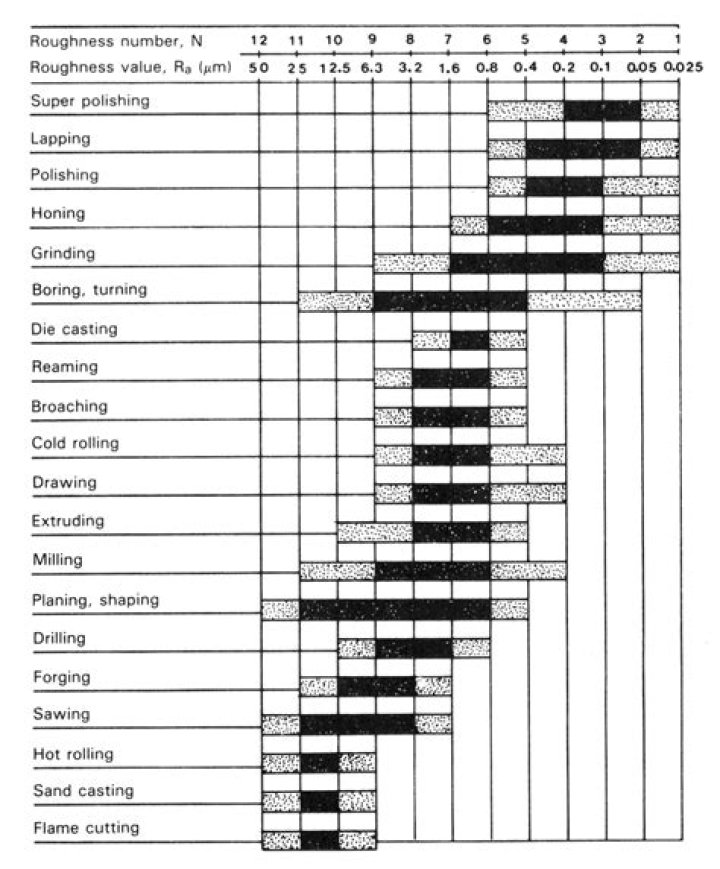

“EQUIVALENT SURFACE FINISH N5 N6 N7 N8 N9”
| Roughness values Ra | Roughness values Ra | Roughness |
|---|---|---|
| 8.3 6.3 | 250 | N9 |
| 3.2 | 125 | N8 |
| 1.6 | 63 | N7 |
| 0.8 | 32 | N6 |
Why is surface finish needed?
The surface finish can affect the ability of the part to resist wear and fatigue; to assist or destroy effective lubrication; to increase or decrease friction and/or abrasion with mating parts; and to resist corrosion.
What is CLA in roughness?
CLA = Center Line average in micro-inches. Rt = Roughness, total in microns.
How is roughness of Ra calculated?
Ra is calculated as the Roughness Average of a surfaces measured microscopic peaks and valleys….That means you:
- Measure height across the microscopic peaks and valleys.
- Calculate the SQUARE of each measurement value.
- Calculate the MEAN (or average) of those numbers (squared).
- Find the square ROOT of that number.
What Ra is #4 finish?
A #4 finish is a straight-grained finish commonly thought of as ‘brushed’ finish, as are #3 and #6 finishes. A standard #4 finish could be about 0.8 (32) Ra, while a #4 Dairy or Sanitary finish have an roughness average between 0.3 (12) Ra and 0.4 (16) Ra.
What is a 32 finish?
Often referred to as the ‘workhorse finish,’ No. 4 Standard Satin Finish (32 Ra Max) is one of the most common finishes suitable for architectural and processing vessels. Consistent satin grain appearance satisfies strict sanitary requirements and is easily blendable.
What is Ra surface roughness?
Ra is calculated as the Roughness Average of a surfaces measured microscopic peaks and valleys. RMS is calculated as the Root Mean Square of a surfaces measured microscopic peaks and valleys. Limited runtimes result in real world surface roughness improvements from 10 to 35%.
What is RT surface finish?
Rt – total height of the roughness profile: Difference between height Zp of the highest peak and depth Zv of the deepest valley within the evaluation length ln (Figure 7).
