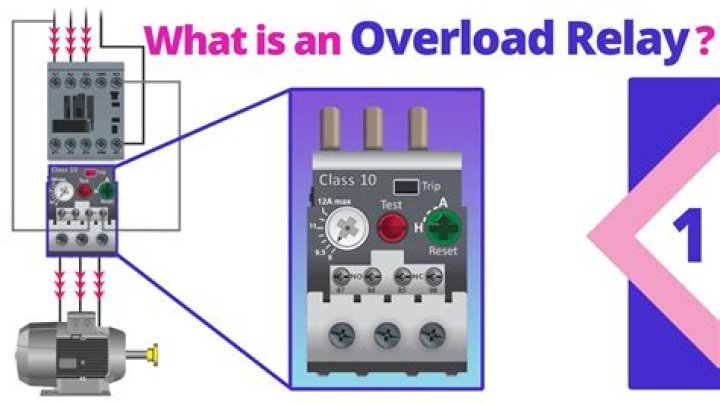

What is an overload relay used for?
What is an overload relay used for?
Overload relays cut off current to the motor when a high-current situation develops due to a ground fault, short circuit, phase failure, or mechanical jamming. They are an inexpensive way of avoiding downtime for repair or replacement of failed motors from excessive current.
What is the difference between relay and overload relay?
An overload relay is an electrical device used to protect an electric motor from overheating. More purposely, fuses, as well as circuit breakers, are intended to detect the overcurrent within the circuit, whereas the relay is intended to detect overheat if an electric motor gets heated.
What is a thermal relay?
A relay that opens or closes contacts with a bending mechanism as a result of the difference in the expansion coefficients of a bimetal, which is heated by the current. The thermal relay switches a magnetic contactor to protect a motor from overload.
What are the two basic types of overload relays?
The two basic types of overload relays are as follows:
- Thermal overload relay.
- Magnetic overload relay.
Where is thermal relay is used?
The thermal relay is mainly used in the low voltage Squirrel Cage induction motor and in low output rating DC motor.
How does a thermal relay operate?
The basic working principle of thermal relay is that, when a bimetallic strip is heated up by a heating coil carrying over current of the system, it bends and makes normally open contacts.
What are the three types of overload?
There are three types of thermal overload relays — bimetallic, eutectic, and electronic. Bimetallic thermal overload relays (sometimes referred to as heater elements) are made of two metals, with different coefficients of thermal expansion, that are fastened or bonded together.
What are the types of relay?
Types of Relays
- Electromagnetic Relays.
- Latching Relays.
- Electronic Relays.
- Non-Latching Relays.
- Reed Relays.
- High-Voltage Relays.
- Small Signal Relays.
- Time Delay Relays.
Can a DC motor run AC supply?
We already know that in a DC Series motor the field winding has very less resistance than a DC Shunt Motor as the field is connected in series with the Armature Winding. So if we give AC supply on a DC Series Motor it will run perfectly. In fact, DC Series can run on both AC and DC supply.
What is DOL starter?
A DOL starter (also known as a direct on line starter or across the line starter) is a method of starting a 3 phase induction motor. In a DOL Starter, an induction motor is connected directly across its 3-phase supply, and the DOL starter applies the full line voltage to the motor terminals.
