What is combined cycle steam turbine?
What is combined cycle steam turbine?
A combined-cycle power plant uses both a gas and a steam turbine together to produce up to 50% more electricity from the same fuel than a traditional simple-cycle plant. The waste heat from the gas turbine is routed to the nearby steam turbine, which generates extra power.
Which cycle is used in gas turbine power plant?
Brayton cycle
The basic thermodynamic cycle used in the gas turbine is the Brayton cycle. This cycle, illustrated by a pressure–temperature diagram in Fig. 1, was described originally by Joule in 1851 and patented by Brayton in 1867.
Which device actually combines two power cycles in a CCGT?
The most common type of combined cycle power plant utilizes gas turbines and is called a combined cycle gas turbine (CCGT) plant. Because gas turbines have low efficiency in simple cycle operation, the output produced by the steam turbine accounts for about half of the CCGT plant output.
Which cycle is used in steam turbine power plant?
power
The steam Rankine cycle is one of the highest utilized types of thermodynamic cycles for electricity production in the world [1]. The steam power stations run on Rankine cycles using steam as a working fluid. The simple ideal Rankine cycle is in fact the most basic vapor power cycle.
How does a combined-cycle gas turbine work?

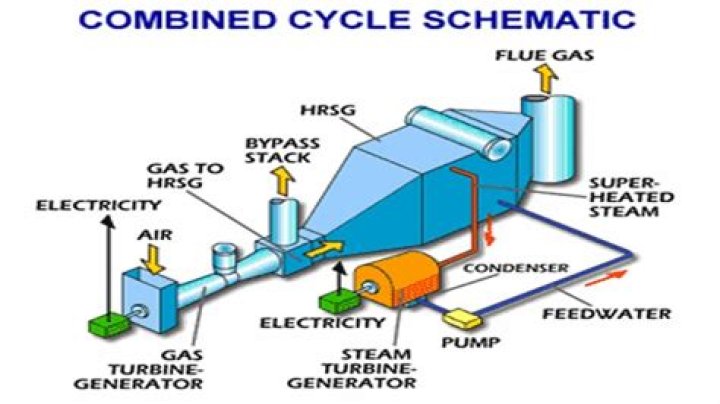

A combined-cycle power system typically uses a gas turbine to drive an electrical generator, and recovers waste heat from the turbine exhaust to generate steam. The steam from waste heat is run through a steam turbine to provide supplemental electricity.
What is difference between gas turbine and steam turbine?
The primary difference between steam and gas turbines is the fact that steam turbines receive power from expanding steam. The internal temperature only reaches 500 to 650 degrees Celsius, less than half of the temperature of gas turbine reactions. This water-based cycle is the Rankine Cycle.
What is a combined-cycle unit?
Combined cycle units are made up of one or more such gas turbines, each with a waste heat steam generator arranged to supply steam to a single or multiple steam turbines, thus forming a combined cycle block or unit.
How does a combined cycle gas turbine work?
What is difference between Rankine and actual Rankine cycle?
Thus the efficiency of the actual Rankine cycle is far lower than the ideal Rankine cycle efficiency….Difference Between Ideal and Actual Rankine Cycle.
| Rankine Cycle Representation is as follows on P-v and T-s diagrams: | |
|---|---|
| Ideal Rankine Cycle | 1-2′-b-3′-4′-1 |
| Actual Rankine Cycle | 1-2-b-3-4-1 |
Why is the Rankine cycle used?
Rankine cycle, in heat engines, ideal cyclical sequence of changes of pressure and temperature of a fluid, such as water, used in an engine, such as a steam engine. It is used as a thermodynamic standard for rating the performance of steam power plants.
What is difference between steam turbine and gas turbine?
How does a combined-cycle work?
In a two-on-one combined cycle system, two combustion turbine generators work in conjunction with two heat-recovery steam generators and a steam turbine generator. The steam spins an additional turbine generator to produce more electricity. The steam is then condensed back to water and recycled.
