DMA contains a control unit to deals with the control functions during DMA operations such as read, write and interrupt. The address Page 2 register of DMA controller is used to generate address and select I/O device to transfer the data block. The Count register counts and hold no. of data block transferred.
What is DMA explain DMA controller with block diagram also explain data transfer using DMA?
Direct Memory Access (DMA) transfers the block of data between the memory and peripheral devices of the system, without the participation of the processor. The unit that controls the activity of accessing memory directly is called a DMA controller. The processor relinquishes the system bus for a few clock cycles.
What is DMA controller explain?
Direct Memory Access (DMA) : DMA Controller is a hardware device that allows I/O devices to directly access memory with less participation of the processor. DMA controller needs the same old circuits of an interface to communicate with the CPU and Input/Output devices.
What is the structure of DMA?
DMA usually has five registers: a block length register, a source address register, a destination address register, a byte counter, and a temporary data register. The block length register indicates the transfer block size. The source address register holds the source address for the next byte/word transfer.
What is DMA and why it is used?
Direct memory access (DMA) is the process of transferring data without the involvement of the processor itself. It is often used for transferring data to/from input/output devices. A separate DMA controller is required to handle the transfer. The controller notifies the DSP processor that it is ready for a transfer.
What is DMA explain with example?
Stands for “Direct Memory Access.” DMA is a method of transferring data from the computer’s RAM to another part of the computer without processing it using the CPU. For example, a PCI controller and a hard drive controller each have their own set of DMA channels.
What is DMA transfer with diagram?

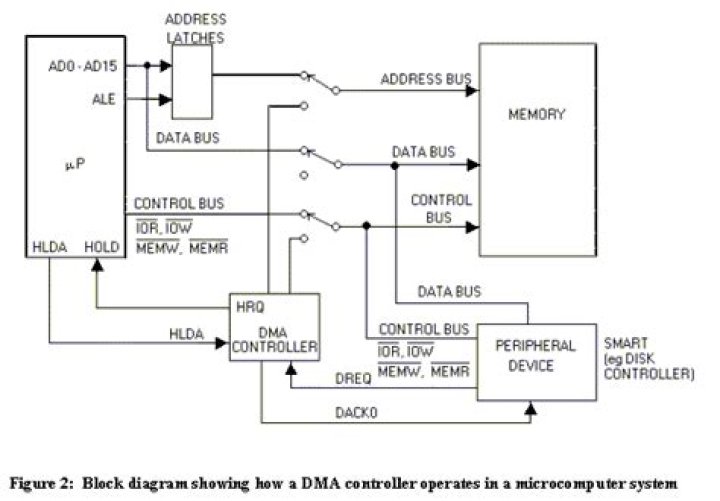

It also contains the control unit and data count for keeping counts of the number of blocks transferred and indicating the direction of transfer of data. When the transfer is completed, DMA informs the processor by raising an interrupt. The typical block diagram of the DMA controller is shown in the figure below.
What is DMA describe how DMA is used to transfer data from peripherals?
When peripheral device is ready, it sends a DMA request signal to DMA controller. DMA sends read control signal to peripheral device and puts the destination address and read signal on address and control buses for memory. Data transfers from peripheral to memory directly.
What is the role of DMA controller in DMA?
DMA controllers The Direct Memory Access (DMA) controller enables the movement of blocks of data from peripheral to memory, memory to peripheral, or memory to memory without burdening the processor. Efficient use of DMA can significantly improve system performance in multiple dimensions.
What are the different types of DMA controllers?
Devices perform one of the following three types of DMA.
- Bus-Master DMA.
- Third-party DMA.
- First-party DMA.
Which of the two signals BR and BG are controlled by DMA controller?
DMA transfer has two control signals BR (Bus Request) and BG (Bus Grant) to facilitate the transfer.
Where is DMA controller located?
The hardware device used for direct memory access is called the DMA controller. DMA controller is a control unit, part of I/O device’s interface circuit, which can transfer blocks of data between I/O devices and main memory with minimal intervention from the processor.
