What is double wythe masonry wall?
What is double wythe masonry wall?
The double wythe system incorporates 4 separate barriers to moisture entering the building: 1) The exterior wythe sheds wind driven rain ; 2) Water making it past the outside wythe is intercepted by the drainage cavity and discharged to the out- side face by flashing and weeps at the bottom of the cavity; 3) A water …
What is a wythe brick wall?
A wythe is a vertical section of a masonry wall that is one unit thick. Most older masonry structures are comprised of an outer wythe of brick (what we think of as the exterior façade of the building) and an interior wythe of brick (to which the drywall is attached).
What is the most common cavity size of a two wythe wall?
The cavity space between the wythes is normally 2 to 4 ½ in. (51 to 114 mm) wide, easily accommodating rigid board insulation.
Can a single wythe brick wall be structural?
In a single wythe brick bearing wall system, the brick masonry serves as both the structural system and the exterior facing. A wood, steel or masonry backing system is not necessary. The interior living space of a brick bearing wall home may be the same as that of a framed home.

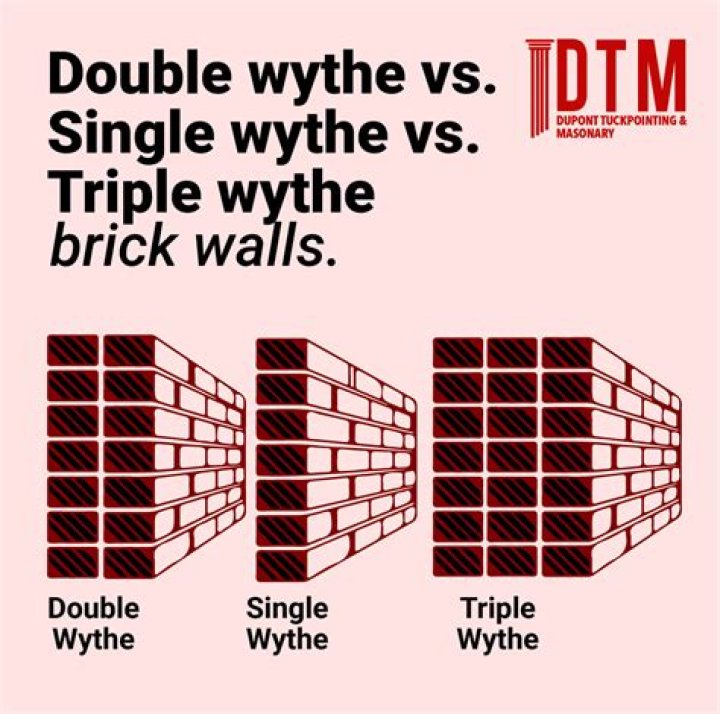

What is the difference between a single Wythe and a double Wythe masonry wall?
A single-leaf wall is a wall without a cavity or continuous vertical joint in its plane. A double-leaf wall is a wall consisting of two parallel leaves with the longitudinal joint between filled solidly with mortar and securely tied together with wall ties so as to result in common action under load.
What is multi Wythe masonry?
Multiwythe masonry walls can take one of several forms: composite, noncomposite or veneer walls. In composite masonry, multiwythe masonry members act with composite action (refs. 1, 2). That is, composite walls are designed so that the wythes act together as a single structural member to resist loads.
What do weep holes do?
The inclusion of weep holes in masonry walls is intended to serve two purposes: Ventilation: They allow ventilating air to the back of a wall to help prevent mildew, dry rot and damp which might otherwise reduce the life or performance of building materials such as cavity wall-ties, cavity insulation and so on.
What is veneer CMU?
CMU Veneer is a very durable siding product made from concrete blocks that is easily maintained and much less expensive than brick veneer. CMU Veneer requires anchoring into the adjacent wall system with part of those anchors embedded into the mortar joints of CMU Veneer.
Is SCR brick used for cavity walls?
SCR brick is used for cavity walls. Cavity walls are brick walls made of two wythes with an air space between the wythes.
What are weep holes in brickwork?
The small vertical slots near the bottom of brick walls are known as weep holes and are used to allow any moisture from condensation to drain out of the wall as well as air to circulate.
What is multi wythe masonry?
Is it OK to cover weep holes?
Whatever you do, do not fill those weep holes. They’re an integral part of the drainage system to keep water from building up behind the brick. If allowed to contact any untreated lumber, this water will cause serious wood rot, mold and, eventually, structural problems with your home.
