What is encoder disc?

What is encoder disc?

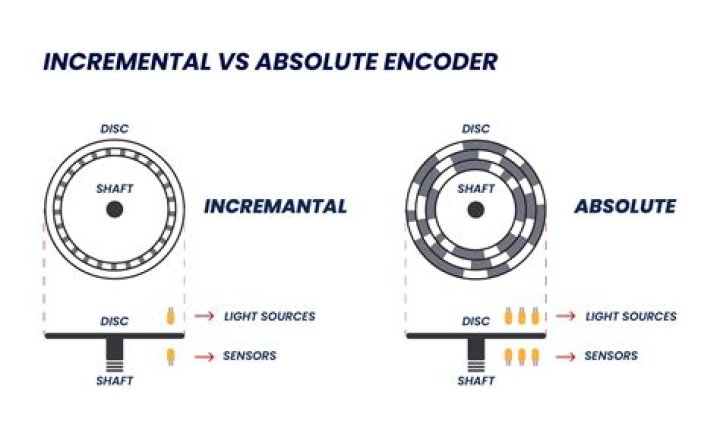

An encoder disk is a key part of an encoder or sensing device used to enable control systems to identify motion, position, speed, direction, or count. Encoder disks essentially convert motion into electrical signals.

What is a rotary encoder used for?

Rotary encoders are used to control the speed of the conveyer belt as well as the direction of the movement. They are required in warehouse distribution systems, baggage handling systems and case-packing systems.

What is a rotary encoder module?

A rotary encoder is a position sensor used to determine the angular position of a rotating shaft. It can be used with an Arduino through modules to achieve such functionality.

How does a rotary optical encoder work?

A rotary encoder, also called a shaft encoder, is an electro-mechanical device that converts the angular position or motion of a shaft or axle to analog or digital output signals. The output of an absolute encoder indicates the current shaft position, making it an angle transducer.

How do you wire a rotary encoder?

Wiring

1. Connect one button switch pin on the rotary encoder to ground on the ItsyBitsy (top black wire)
2. Connect one button switch pin on the rotary encoder to the D12 pin on the ItsyBitsy (green wire)
3. Connect the C (common ground) pin on the rotary encoder to the ground pin on the ItsyBitsy (middle black wire)

What is the purpose of encoder?

Summary. An encoder is a sensor that detects rotation angle or linear displacement. Encoders are used in devices that need to operate in high speed and with high accuracy.

How does a shaft encoder work?

A Shaft Encoder is an electromechanical transducer, which converts a rotary position into an electronic signal suitable for providing input data to a vast range of electronic control devices. Shaft Encoders are used for a variety of mechanical applications.

How do you hook up a rotary encoder?

How does a magnetic encoder work?

The simplest magnetic encoder consists of a permanent magnet and a magnetic sensor. When the permanent magnet attached to the motor shaft rotates, the direction of the magnetic field detected by the magnetic sensor changes, as a result the encoder detects the rotational position and speed of the motor shaft.

How many terminals does the rotary encoder have?

5 terminals
Explanation: The rotary encoder has 5 terminals which include the Vcc for power supply, the CLK for clock, DATA which provides us the output wave, and SWC which switches voltage to 0 and GND which is required for completing the circuit through the sensor and grounding it.

What is the purpose of the CLK pin in the rotary encoder?

CLK (Output A) is the primary output pulse for determining the amount of rotation. Each time the knob is rotated by one detent (click) in either direction, the ‘CLK’ output goes through one cycle of going HIGH and then LOW.
