What is hysteresis in voltage?
What is hysteresis in voltage?
Voltage hysteresis is a specific type of hysteresis that occurs in electrical systems when current or voltage changes, but the effects of the changes are delayed past obvious intervals like propagation delays.
What causes hysteresis?
Hysteresis loss is caused by the magnetization and demagnetization of the core as current flows in the forward and reverse directions. As the magnetizing force (current) increases, the magnetic flux increases. In order for the flux density to reach zero, the magnetizing force must be applied in the negative direction.
What is hysteresis why it is important for the instrument?

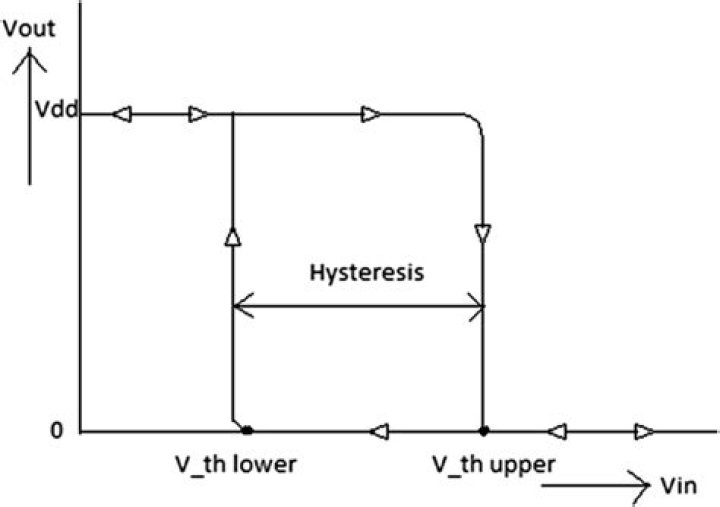

Hysteresis is important for producing stable switching behavior in a comparator circuit. Noise on the input signal in a comparator circuit can produce multiple transitions as the input signal rises. Intentionally adding hysteresis to a comparator circuit is useful for suppressing this unintended switching due to noise.
What does you mean by hysteresis in electronics?
(Electrical engineering: Circuits, Electrical power) Hysteresis is something that happens with magnetic materials so that, if a varying magnetizing signal is applied, the resulting magnetism that is created follows the applied signal, but with a delay.
What is the effect of hysteresis?
Effects. Hysteresis Effect. The magnetization of ferromagnetic substances due to a varying magnetic field lags behind the field. This effect is called hysteresis, and the term is used to describe any system in whose response depends not only on its current state, but also upon its past history.
What is hysteresis explain with diagram?
A hysteresis loop (also known as a hysteresis curve) is a four-quadrant graph that shows the relationship between the induced magnetic flux density B and the magnetizing force H. It is often referred to as the B-H loop. From hysteresis loops, we can determine a number of magnetic properties about a material.
How do you determine hysteresis?
In this simplified case the total hysteresis is the difference in y values compared to the total amount of y span. The calculation of the hysteresis in this simplified condition occurs at the X midpoint of the curve.
What is hysteresis and its examples?
Hysteresis means slow to respond, lagging, a retardation of an effect when the forces that act upon a body are changed. In economics, it refers to the delayed effects of something. For example, as unemployment rises, people get used to a lower standard of living.
What is hysteresis in opamp?
Hysteresis is required in opamps to prevent them from producing a fluctuating output (ON/OFF) in response to a fluctuating input which is being monitored by the opamp. this action creates a rapid switching of the opamp output at the full charge threshold.
How is hysteresis voltage calculated?
The hysteresis is determined by the output levels and the resistance ratio R1/(R1+R2), and the switching-point voltage is offset slightly from Vref by the attenuation ratio R2/(R1+R2). Figure 3. Comparator using inverting input, dual supplies.
What is a hysteresis value?
Hysteresis is defined as the deviation of the contact angle from its theoretical (and mean) value due to physical phenomena like microscopic surface defects and roughness.
What is hysteresis function?
The hysteresis switching function is generally included for all switch variants, whether mechanical or electronic, and whether for the parameter of pressure, temperature, level or flow. Hysteresis is generally understood to be the difference between the switch point and the reset point.
