What is internal flow in heat transfer?
What is internal flow in heat transfer?
Internal convection heat transfer occurs between the fluid flowing in a pipe and the pipe internal surface; it depends on the fluid properties, the flow velocity, and the pipe diameter.
Why is Nusselt number important?
A Nusselt number of value one represents heat transfer by pure conduction. A value between one and 10 is characteristic of slug flow or laminar flow. A larger Nusselt number corresponds to more active convection, with turbulent flow typically in the 100–1000 range.
What is the application of Nusselt number?
Nusselt number on the other hand is a non-dimensional heat transfer coefficient. It is used to determine whether the heat transfer is conduction or convection.
What is internal heat transfer coefficient?
The heat transfer coefficient is the reciprocal of thermal insulance. This is used for building materials (R-value) and for clothing insulation.
What is meant by internal flow?
An internal flow is any flow through a (circular) pipe, (non-circular) duct or (open, liquid-flow) channel where confining walls, or a free surface, guide the flow from an arbitrarily defined inlet state to an equally arbitrary outlet state.
How does heat flow provide an example?

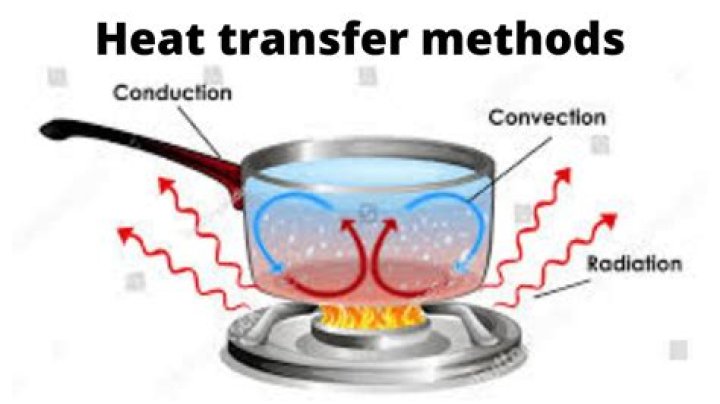

Water boiling in a pan is a good example of these convection currents. Another good example of convection is in the atmosphere. The earth’s surface is warmed by the sun, the warm air rises and cool air moves in.
Can Nusselt number be zero?
Nusselt number can be negative, since it is defined as the dimensionless temperature gradient at the wall. The slop may be negative or positive, depending on the direction of heat flux.
What is the significance of Reynold no and nusselt no and prandtl no and how we make use of them in industry?
Reynolds determines if the flow is laminar or turbulent. Nusselt calculates the transference of heat relative to pure conduction. Prandtl represents how big is the viscous boundary layer relative to thermal boundary layer.
What is critical insulation thickness?
Critical thickness of insulation means maximum heat loss with min thermal resistance. This concept is useful in the situation when surface area of the base object increases with the insulation, i.e., cylindrical and spherical systems.
Is thermal conductivity the same as heat transfer coefficient?
The thermal conductivity of the fluid is related to the spatial molecular diffusion of heat throughout the fluid. The convective heat transfer coefficient is related to transport of heat due to the bulk motion of the fluid above or around a solid.
Which has highest thermal conductivity?
Diamond – 2000 – 2200 W/m•K. Diamond is the leading thermally conductive material and has conductivity values measured 5x’s higher than copper, the most manufactured metal in the United States. Diamond atoms are composed of a simple carbon backbone that is an ideal molecular structure for effective heat transfer.
Which characteristic S define internal flow?
