What is IV and PV characteristics of solar cell?
What is IV and PV characteristics of solar cell?
The main points of the I-V and P-V curves characteristics are the short-circuit current ( ) or the maximum current at zero voltage, and the open-circuit voltage ( ) or the maximum voltage at zero current.
What are the characteristics features of solar energy?
Solar energy is an inexhaustible, clean, renewable energy source. Photovoltaic cells are a key component in solar power generation, so thorough research on output characteristics is of far-reaching importance.
What are the IV characteristics of solar cell?

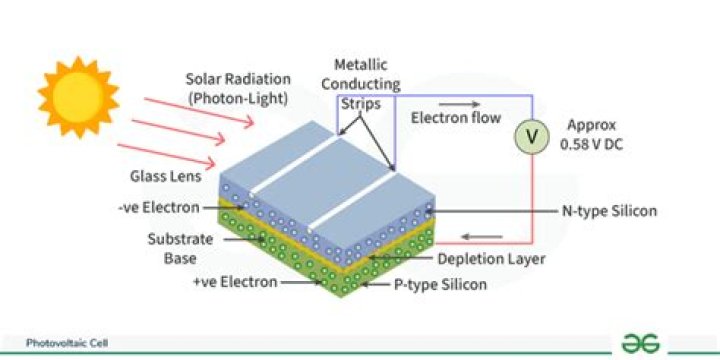

Typically a solar or photovoltaic cell has negative front contact and positive back contact. A semiconductor p-n junction is in the middle of these two contacts like a battery. If these two sides are connected by an external circuit, current will start flowing from positive to negative terminal of the solar cell.
What factors do the performance characteristic of PV solar cell depends?
Some of these factors include: the type of PV material, solar radiation intensity received, cell temperature, parasitic resistances, cloud and other shading effects, inverter efficiency, dust, module orientation, weather conditions, geographical location, cable thickness etc.
What is VI characteristics of solar cell?
V-I characteristics of Solar cell: Isc is the short circuit current and it is measured by short circuiting the terminals. Voc is the open circuit voltage and it is measured when no load is connected. Pm is maximum power, Im is maximum current, Vm is maximum voltage and it occurs at the bend of the characteristic curve.
What are the characteristics of the solar cells Mcq?
This set of Engineering Physics Multiple Choice Questions & Answers (MCQs) focuses on “Solar Cell”. Explanation: A p-n junction which generated EMF when solar radiation is incident on it is called a solar cell. The material used for fabrication of solar cell should have a band gap of around 1.5 eV.
What is solar energy write its three characteristics?
solar is a source of energy it is obtain from the sun. photovoltaic effects. solar thermal which converts solar radiation into heat. radiant transformation is the energy that is in sunlight.
What are 5 advantages of solar energy?
Advantages of Solar Energy
- Renewable Energy Source. Among all the benefits of solar panels, the most important thing is that solar energy is a truly renewable energy source.
- Reduces Electricity Bills.
- Diverse Applications.
- Low Maintenance Costs.
- Technology Development.
- Cost.
- Weather-Dependent.
- Solar Energy Storage Is Expensive.
What is the IV and PV curve for PV module?
A current-voltage (I-V) curve shows the possible combinations of current and voltage output of a photovoltaic (PV) device. A PV device, such as a solar module, produces its maximum current when there is no resistance in the circuit, i.e., when there is a short circuit between its positive and negative terminals.
What is the importance and significance of IV characteristics graph of solar cells?
Solar Cell I-V Characteristic Curves are graphs of output voltage versus current for different levels of insolation and temperature and can tell you a lot about a PV cell or panel’s ability to convert sunlight into electricity.
What are the advantages of the solar cells?
Benefits or Advantages of Solar Cell ➨It is very easy to operate compare to other power sources of re-newable type. ➨It does not produce any noise as it does not have any moving parts. ➨It does not generate emissions or radiations. ➨It does not require fuels or water to produce electricity.
What are the advantages of the solar cells Mcq?
The main advantages of solar energy are reliability, predictability, uninterruptible, low maintenance, free of cost, no pollution, and performance is good. We can use solar energy directly to heat the water, lighting, cooking, passive heating, to charge the portable devices, attic ventilation, inverter and cooling.
