What is KVL and KCL with example?

What is KVL and KCL with example?

The KVL states that the algebraic sum of the voltage at node in a closed circuit is equal to zero. The KCL law states that, in a closed circuit, the entering current at node is equal to the current leaving at the node. But, in complex electrical circuits, we cannot use this law to calculate the voltage and current.

What is KVL example?

Kirchhoff’s Voltage Law (KVL) states that, for any loop in an electrical circuit, the sum of the electrical voltage across the loop is zero. Let’s take as example the following circuit. It has two loops, A and B, and two nodes, C and D. With the arrows is defined the positive flow of the electrical current.

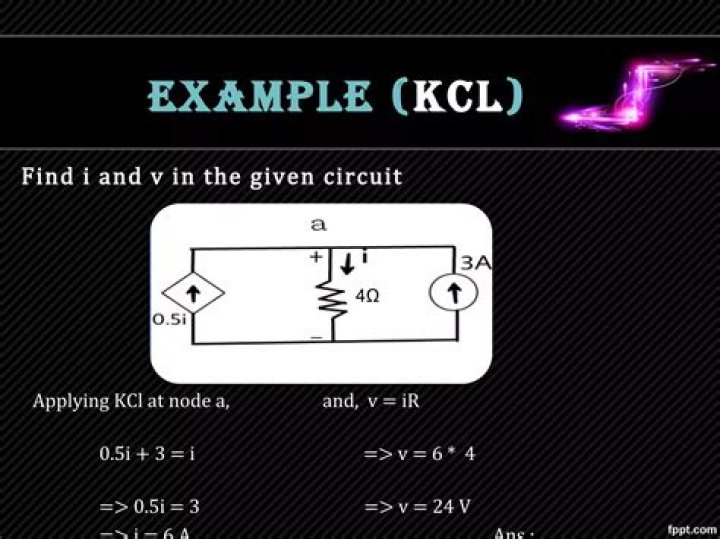

How do you solve KCL problems?

Steps of Solving Circuit Problem with KCL

1. Mark the nodes or junctions in the circuit diagram.
2. Assign V1, V2,—Vn, etc for each node to find the voltage at every node.
3. Find the incoming and outgoing current at each node.
4. Apply KCL to each of the nodes to set the algebraic sum of all currents into the node to zero.

What are the limitations of Ohm law?

Limitations of Ohm’s Law of Current Electricity The law is not applicable to unilateral networks. Unilateral networks allow the current to flow in one direction. Such types of network consist of elements like a diode, transistor, etc. Ohm’s law is also not applicable to non – linear elements.

How do you prove KVL?

C. Verify KVL

1. Use a voltmeter to measure the voltages V1 , V2 , and V3 shown on the schematic. Make your measurements to be consistent with the given reference directions.
2. Substitute your measured voltages from part 1 into the KVL equations you determined in section B. Verify that KVL is satisfied for both of the loops.

How do you solve KVL equations?

More videos on YouTube

1. Take your time, breathe, and assess the problem.
2. Assign mesh currents to all of the meshes.
3. Apply KVL to each of the meshes, using Ohm’s Law to show the voltages in terms of the current.
4. Solve the simultaneous equations (like we did with KCL) to find the actual values.
5. Sanity check.

How do you use KVL in circuit?

Application of Kirchhoffs Circuit Laws

1. Assume all voltages and resistances are given.
2. Assigns a current to each branch or mesh (clockwise or.
3. Label each branch with a branch current.
4. Find Kirchhoff’s first law equations for each node.
5. Find Kirchhoff’s second law equations for each of the independent loops of the circuit.

What are the limitations of KVL and KCL?

Disadvantages of Kirchoff’s Law KCL and KVL are not good for high frequency AC circuits. KCL is valid only if the total electric charge is constant in the circuit. KVL is based on the assumption that there is no changing magnetic field within the closed circuit.

Why is Ohms law invalid for varying temperature?

Ohms law is valid only for linear elements. It shows a linear relationship between the applied voltage and the resulting current, resistance being a constant. If the resistance changes with change in temperature then Ohms law will not be valid as it will fail to establish a linear relationship.
