What is non-segregated bus duct?
What is non-segregated bus duct?
Non-segregated phase bus duct is an assembly of bus conductors with associated connections, joints and insulating supports confined within a metal enclosure without inter-phase barriers. Because of its compact dimensions, relative light weight and user-friendly design, non-segregated phase bus duct is easy to install.
What is segregated bus duct?

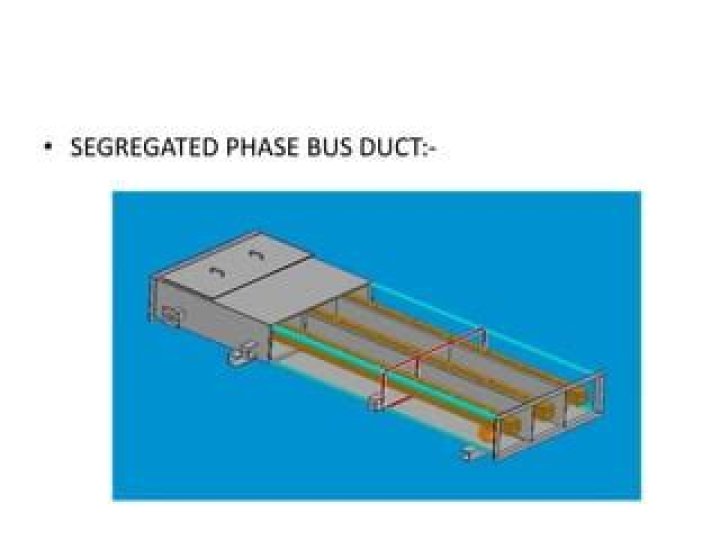

A segregated phase busduct is a metal enclosed busduct wherein all the three phase busbars are enclosed in a common enclosure and the all the phases are segregated by means of non-magnetic metal barriers preferably made of the same materials as that of the bus enclosure with degree of protection IP65.
What is isolated phase bus duct?
The Isolated Phase Bus Duct (IPBD) is the main conduit for power distribution in a power generation facility. With current carried between the generator and a step-up transformer solely via the IPBD system, it is the undisputable critical core of any power generation operation.
What are the types of bus duct?
Numerous types of Bus ducts available in the market for instance Plug-in bus duct, cable bus duct, electrical bus duct, sandwich bus duct, and 11KV bus duct and so on.
What is the difference between busbar and cable?
A busbar is a rigid piece of copper or aluminum, bolted or housed inside switchgear, panel boards, and busway enclosures for local high-current power distribution. Electrical cables are an assembly of one or more wires running side by side or bundled to carry electric current.
What is the difference between bus duct and busbar?
A busbar is a current current carrying conductor, commonly rectangular in shape, which can be tapped at various places along its length to supply power to a load. A bus duct is a safety cover for bus bars so that they are protected from damage and also from contact with people.
What is Ipbd and Spbd?
IPBD preferably used to reduce electrodynamic forces between conductors during short circuit conditions, hence simplified insulator design. View Single Line Diagram of Power plant for identifying the running path of IPBD. SPBD: Segregated Phase Bus Duct.
What is LT bus duct?
The LT Bus Duct is also called busway and is used for conducting current for electricity. It is a metal sheet that contains aluminum or copper busbars which are good conductors of electricity and helps in creating a conducive environment. LT Bus Duct is used in electrical power distribution.
What is the difference between bus duct and busway?
Bus Duct Basics A key part of electrical power distribution is bus duct. Also called busway, bus duct provides an alternative means of conducting electricity. Bus duct is used in commercial and industrial settings to conduct electricity to power cables or cable bus.
What is a bus duct system?
In electric power distribution, a bus duct (also called busway) is a sheet metal duct or also cast resin insulated containing either copper or aluminium busbars for the purpose of conducting a substantial current of electricity. It is an alternative means of conducting electricity to power cables or cable bus.
What is the difference between bus duct and cable?
Better Resistance: Busbars have rigid design elements and hence has better resistance than cables, especially in case of short circuits. Hence the loss of energy due to transmission and distribution is lower in Busbars. Busbars also have a limited growth of reactive power to operate compared to cable systems.
What is the purpose of bus duct?
Bus duct is used in commercial and industrial settings to conduct electricity to power cables or cable bus. Structurally, a bus duct is a sheet metal duct containing either aluminum or copper busbars (metallic strips or bars that conduct a substantial electrical current) in a grounded metal enclosure.
