What is OD pipe size?
What is OD pipe size?

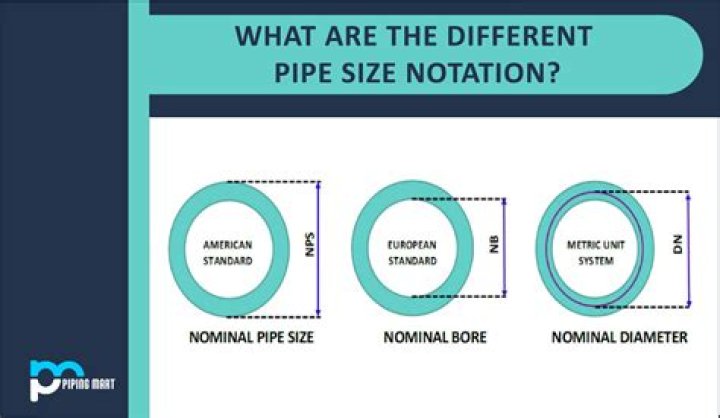

OD and Nominal Pipe Size Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″). Pipe is usually measured by NOMINAL PIPE SIZE (NPS).
What is the OD of 1 pipe?
1.315
Pipe Size Chart
| PIPE SCHEDULES WALL THICKNESS (Inches) | ||
|---|---|---|
| Nominal | O.D. Inches | 80s & E.H. |
| 3/4 | 1.050 | .154 |
| 1 | 1.315 | .179 |
| 1 1/4 | 1.660 | .191 |
What does Sch 40 mean?
The most used pipe schedule is SCH 40. For NPS 12 or smaller pipes or pipes with outer diameter of around 12 inches, SCH 40 is the same wall thickness of the previously used value. The SCH 80 wall thickness, on the other hand, is the same as the previously used XS wall thickness for pipe sizes up to NPS 10.
What is the diameter of Schedule 40 pipe?
A 4 inches (100 mm) Schedule 40 pipe has an outside diameter of 4.500 inches (114.30 mm), a wall thickness of 0.237 inches (6.02 mm), giving a bore of 4.026 inches (102.26 mm)
What is the OD of 3/4 pipe?
1.050″
Steel Pipe Sizes – Schedule 40
| NPS | Outside Diameter (in) | Weight (lb/ft) |
|---|---|---|
| 3/4 | 1.050″ | 1.13 lb/ft |
| 1 | 1.315″ | 1.68 lb/ft |
| 1-1/4 | 1.660″ | 2.27 lb/ft |
| 1-1/2 | 1.900″ | 2.72 lb/ft |
What is the difference between Sch 40 and Sch 40S?
Wat is difference between sch 40 and sch 40s? – Quora. Sch 40S is a stainless steel designation. In smaller sizes the wall thickness is the same between e.g.40 / 40S, but schedule 10 and 5 are not normally made for carbon steel pipe, but are for stainless. So the wall thickness might vary depending on the size.
What is Schedule 40 DWV pipe?
DWV parts look very similar to standard white schedule 40 PVC pipe and fittings. The only real difference is that DWV PVC is not made to handle pressurized uses like schedule 40 parts are. Instead, DWV pipe and fittings are made to handle a different class of uses – Drain, Waste, and Vent (hence the name DWV).
What size is schedule 40 pipe?
