What is open-circuit test of a transformer explain?
What is open-circuit test of a transformer explain?
The open-circuit test, or no-load test, is one of the methods used in electrical engineering to determine the no-load impedance in the excitation branch of a transformer. The no load is represented by the open circuit, which is represented on the right side of the figure as the “hole” or incomplete part of the circuit.
Do open-circuit test in a transformer is used to measure?
Therefore it is seen that the open circuit test on transformer is used to determine core losses in transformer and parameters of the shunt branch of the equivalent circuit of the transformer.
What is the purpose of open-circuit test and short circuit test of a transformer?
The open-circuit test and the short-circuit test being performed on a transformer to determine the circuit parameters, efficiency and the voltage regulation without actual loaded of the transformer.
How can you determine the open circuit characteristics of synchronous generator?
For getting the Open Circuit Characteristics of Synchronous Machine, the alternator is first driven at its rated speed and the open terminal voltage i.e. voltage across the armature terminal is noted by varying the field current.
What is basic difference between open and short circuit test of transformer?
Current passing through an open circuit is zero, while current through the short circuit is infinite. An open circuit posses infinite resistance, while a short circuit posses zero resistance. The voltage through the short circuit is zero, while voltage through the short circuit in maximum.
How do you test for an open circuit?
Maintain the first test probe at the hot wire terminal of the circuit. Remove the second probe from the neutral terminal then place it on the ground terminal for the circuit. Once more the multimeter will read “OL” or infinity if the circuit is open or zero if the circuit is functioning.
Which of the following is are obtained by performing open circuit test of transformer?
Explanation: Open circuit test is performed to find the core loss in the transformer.
What is open circuit and short circuit?
A short circuit implies that the two terminals are externally connected with resistance R=0 , the same as an ideal wire. This means there is zero voltage difference for any current value. An open circuit implies that the two terminals are points are externally disconnected, which is equivalent to a resistance R=∞ .
What is OCC and SCC test of generator?
As the internal generated voltage EA is measured from the OCC at that point where the generator is partly saturated for a higher value of the field current and the armature current (IA) taken from the SCC where the generator is un-saturated for all values of the field current.
What is an example of an open circuit?
The definition of an open circuit is a broken path for an electrical current due to an open switch or frayed wire. An example of an open circuit is a string of electric lights that don’t work if one bulb goes out. An electrical circuit that does not conduct current because a switch is open, a wire is broken, etc.
How do you conduct the open circuit test on a power transformer?

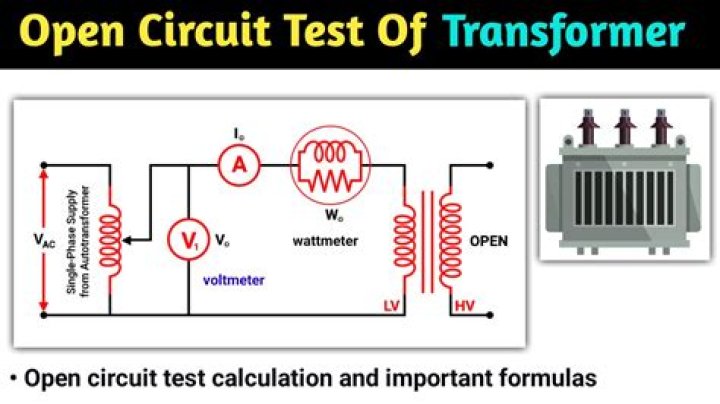

Open Circuit Test The wattmeter, ammeter and the voltage are connected to their primary winding. The nominal rated voltage is supplied to their primary winding with the help of the ac source. The secondary winding of the transformer is kept open, and the voltmeter is connected to their terminal.
