What is standard faucet thread size

In the United States, the thread size are 15/16″-27 for standard-sized male and 55/64″-27 for standard-sized female.

What type of thread is on a faucet?

3/8 NPT is national pipe thread. Also known as Tapered threads. You need 3/8″ compression(to hook to your stop) and 1/2″ FIP(to hook to your faucet).

Are faucet sizes standard?

What are the standard faucet hole sizes for kitchens and bathrooms? The standard faucet hole sizes for kitchens and bathrooms are 1 3/8″ (1.375 Inches or 34.925 mm) in diameter unless otherwise mentioned in the specification. However, faucet holes may vary in size depending on the particular make and model.

What size is faucet supply line?

Standard Sink Supply Line Size The branch lines, which are the ones that feed individual fixtures, are 1/2 inch in diameter. The 1/2-inch supply pipes that come to the sink each terminate with a shutoff valve, and this valve is one of the two factors that determine the connector size on the faucet hose.

How do you measure a faucet thread?

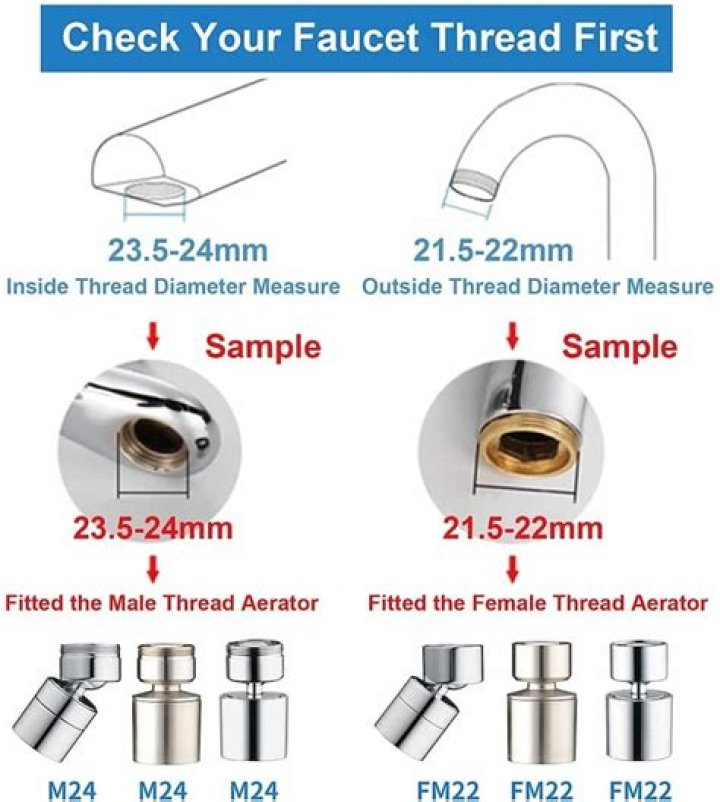

The easiest way to find out the size of the thread in your mixer tap or faucet is to remove the aerator (this is the part that screws off at the end of your tap) and measure the diameter (across the centre) of the thread.

How do I know what size faucet I need?

Measure the distance between the handles. Hold the the tape measure above the faucet if it’s in the way. If the distance is six inches or more you need a “widespread” or “eight inch spread” faucet.

Are faucet supply lines NPT?

A standard residential faucet supply line has a 3/8-inch compression fitting on one end and a 1/2-inch female NPT fitting on the other.

Are faucet sizes universal?

Since there are many different types of kitchen faucets, there is no standard or typical hole size. … The faucet hole size will vary depending on the kitchen faucet you plan to install. Measure the faucet hole size before you shop.

What size is standard plumbing pipe?

In most cases, the main pipeline from the street to your home is either 3/4 or 1 inch in diameter, supply branches use 3/4-inch-diameter pipe, and pipes for individual components are 1/2 inch.

How do I know what size my kitchen faucet is?

If you have windows or cabinets above your sink, measure upward from the center mounting hole to find the maximum overall height and ensure your new faucet can fit comfortably underneath. To find the ideal spout reach, measure from the center mounting hole forward to the center of your sink.

Article first time published on

What does 8 inch spread faucet mean?

On an 8″ spread there will be 8″ from the center of the hot faucet to the center of the cold faucet. Like this: A 4″ or mini spread will be quite close together and make it difficult to clean around the handles and spout.

How can I tell what kind of faucet I have?

Find the logo. The first and easiest way to find out the brand of your kitchen faucet will be if you can locate the logo somewhere on it. …
Find a model number. …
Count the splines on the broach and measure the stem. …
Distinguishing features. …
Use a broach gauge.

What kind of pipe do you use for water line?

PVC Pipe. When it comes to residential water lines, PVC is the most common type used. Not only is this type affordable but it also offers a large variety of sizes and fittings. Due to its polyvinyl material, this type of pipe will not rust or corrode and it should not ever need to be replaced.

What is the difference between MIP and FIP?

FIP means Female Iron Pipe. MIP is Male Iron Pipe. As the Pure Water Gazette points out, sometimes FIP is called FPT or Female Pipe Thread. And MIP is called MPT or Male Pipe Thread.

What size are copper water lines?

In the plumbing trade, the size of copper tubing is measured by its outside diameter in millimeters. Common sizes are 15 mm and 22 mm. Other sizes include 18 mm, 28 mm, 35 mm, 42 mm, 54 mm, 66.7 mm, 76.1 mm, and 108 mm outside diameters.

What is a 4 inch spread faucet?

The 4” or center set faucet has the faucet’s handles and the spouts combined through a deck plate. But in some designs, the handles and spouts are not joined in a single plate. These are the mini spread 4 inch faucets. The 4” is the measure of the distance between its handles.

What does a 4 inch centerset faucet mean?

The four-inch measurement for a centerset faucet refers to the center to center distance between the two furthest mounting holes. Centerset faucets have three mounting holes. … All faucets with this kind of mounting pattern are measured between the two furthest spaced openings to get the desired measurement.

Are bathroom faucets universal?

Bathroom sink faucets are not the same size and are not designed to fit all sinks universally. That said, excluding specialty built custom work, bathroom faucets are regularly manufactured in one of four different spacing configurations to accommodate the most common and popular faucet types: Single-Hole.

What is NPT thread size?

Definition of pipe thread acronymsNPTNational Pipe Thread (tapered)GHTGarden Hose thread

How do you measure NPT thread size?

To determine the NPT size, with a caliper, measure the diameter of the 2nd or 3rd thread on your pipe, fitting or valve as shown below. Find the caliper measurement in the chart and cross reference the nominal NPT pipe size. Don’t get confused, the actual measurement is not the same as the NPT pipe size.

How do I identify pipe threads?

Thread dimensions are based on the ID of the pipe. Use a caliper, measuring tape, or ruler to measure the thread diameter of a male thread or female thread. Measure the inner diameter (ID) of the female thread and the outer diameter (OD) of the male thread. This number will help determine the thread dimension.

What is standard sink drain pipe size?

Some older sinks may have drains that connect to a 1 1/4-inch tailpiece, but most modern drains have a 1 1/2-inch outlet. All the pipes that connect to the tailpiece, including the P-trap assembly and all the horizontal extensions, are either 1 1/4 or 1 1/2 inches in diameter.

How do you size a water line?

Add up the total number of water supply fixture units (wsfu) required in the facility.
Estimate demand using the table from the IPC that correlates wsfu to expected demand.
Size the pipe using demand vs. friction loss curves found in the IPC charts.

How is water pipe size measured?

To find it, measure around the circumference of the pipe with flexible measuring tape. Divide the circumference by pi, or about 3.14159. For example, if the circumference is 12.57 inches (319 mm), you would divide by pi, and get an outside diameter of about 4 inches (100 mm).

Are bathroom faucets standard size?

Standard centerset faucet units, typically used on bathroom sinks, measure 4 inches on center. Wideset faucets and spouts may be units with bases, but may also mount only handles and spouts on walls or tubs. Standard widespread faucets measure between 8 and 16 inches on center.

Are all faucets interchangeable?

Not all bathroom sink faucets work with every sink, so it’s important to make sure the faucet you choose will fit your sink or basin. Standard faucet drillings are centerset, single-hole or widespread.

Are bathroom sink holes standard size?

While a bathroom sink’s design and overall size may vary from one model to the next, the drain holes are fairly standard, 1.25 inches being a general standard, with widths of 1.5 inches and 1.625 inches also common. The size of the hole helps determine which size drain is needed for that particular sink.

Can you use 8-inch 4-inch faucet?

The Distance Between the Outer Holes But as you’ve already guessed, it’s not a case of one size fits all. A 4-inch faucet will fit sinks with outer holes that measure 4-inches apart. An 8-inch faucet will fit sinks with outer holes that measure 8-inches apart.

Will a widespread faucet fit?

Unfortunately, the majority of widespread faucets will not fit in that space. A happy alternative would be to use a mini widespread faucet. These are widespread faucets that are designed to fit in the same space as a centerset faucet. They come in 4-inch, 6-inch, and 8-inch options.

How do you measure a centerset faucet?

Make sure to measure your faucet centers. This refers to the distance, in inches, between the pre-drilled faucet holes in the sink or vanity, from the very center of the left hole to the very center of the right hole. These center points should correspond to the center connections of the faucets to be installed there.

How do I know what type of bathroom faucet I have?

Count the Splines If you can’t find an identifying model number or manufacturer’s name on the faucet itself, you can identify the manufacturer if you remove the handle and the faucet stem and count the number of splines on its broach and measure the length of the stem.
