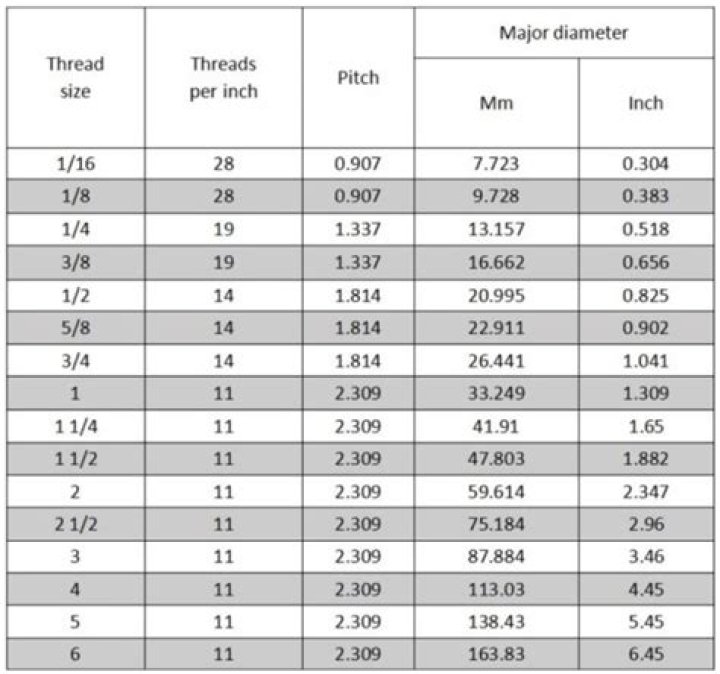

What is the diameter of a 3/4 BSP thread?

What is the diameter of a 3/4 BSP thread?

British Standard Pipe Thread (BSPT)

How are BSPP threads measured?

To find the thread size:

1. 1) Measure the O.D (outer diameter) of the BSP thread.
2. 2) Take the O.D measurement (in inches) and subtract 1/4 inch (. 25”).
3. 1) Multiply 3.5 by 4 to get 14. This is the number of threads per inch.
4. 2) Combine the thread size with the number of threads per inch and refer to.

Is 3/4 BSP the same as 22mm?

If your ball valve is 22mm it is a copper compression fitting otherwise all screw threads in the UK even on 22mm metric fittings have 3/4 BSP threads.

What is a 3/4 BSP connection?

Use a tape rule (or vernier gauge) to measure across the outside of the male thread. Note that a thread that measures 1/2″ is not a 1/2″ BSP thread. Similarly, a thread that measures 1″ is actually a 3/4″ BSP thread.

Are BSPP threads tapered?

British Pipe Standard fittings are among the most popular of all foreign threads. These threads come in 2 versions: parallel (BSPP), and tapered (BSPT). The thread flank angle for both tapered and parallel British threads is 55°.

What is a BSPP fitting?

BSPP (British Standard Parallel Pipe) is most popular in the UK, Europe, Asia, Australia, New Zealand and South Africa. It is a parallel thread fitting that uses a bonded seal ring to do the sealing. No thread sealant is needed to form a seal.

Is BSPP compatible with BSPT?

Thread I.D. The BSPT (tapered) male will mate with a BSPT (tapered) female, or a BSPP (parallel) female. When mating with either the BSPT (tapered) female or the BSPP (parallel) female port, the seal with made on the threads. The BSPT connector is similar to, but not interchangeable with, the NPTF connector.

What thread is on a 22mm compression fitting?

The threads on compression fittings are usually 1/2″ BSP and 3/4″ BSP (for the 15mm and 22mm fittings).
