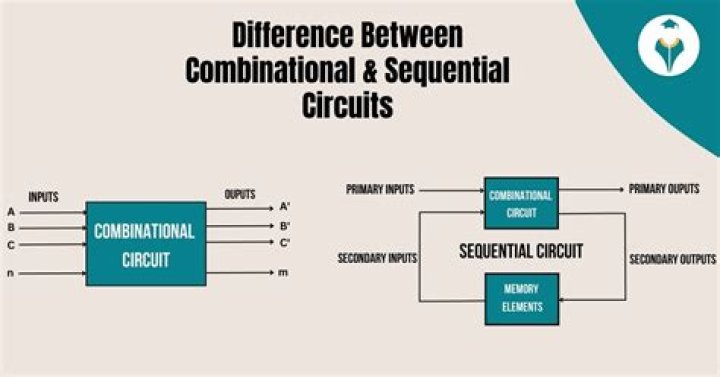

What is the difference between combination and sequential logic?

The crucial difference between combinational and sequential circuit is that combinational circuit result only relies on the input present at that instant while in the sequential circuit the output of the logic not just depends on the latest input but also on the earlier outputs.

What is sequential logic in Verilog?

Sequential Logic in Verilog. ■ Define blocks that have memory. ▪ Flip-Flops, Latches, Finite State Machines. ■ Sequential Logic is triggered by a ‘CLOCK’ event. ▪ Latches are sensitive to level of the signal.

What is the difference between combinational logic and sequential logic Mcq?

What is the difference between combinational logic and sequential logic? Combinational circuits are not triggered by timing pulses, sequential circuits are triggered by timing pulses. Combinational and sequential circuits are both triggered by timing pulses.

What is the difference between combinational and sequential circuits Iiustrate at least 7 8 points of difference?

The combinational circuit is time-independent. The output it generates does not depend on any of its previous inputs. On the other hand, sequential circuits are the ones that depend on clock cycles. They depend entirely on the past as well as the present inputs for generating output.

What is combinational logic gates?

Combinational Logic Circuits are made up from basic logic NAND, NOR or NOT gates that are “combined” or connected together to produce more complicated switching circuits. These logic gates are the building blocks of combinational logic circuits.

Is Flip Flop a sequential circuit?

Since things happen with R or S are low, they are active-low inputs. If we wanted the opposite, i.e. active-high inputs, an inverter would be added to each input. This Flip-Flop is a sequential circuit.

How do you define timescale in Verilog?

Verilog simulation depends on how time is defined because the simulator needs to know what a #1 means in terms of time. The `timescale compiler directive specifies the time unit and precision for the modules that follow it.

What is sequential circuit with example?

Examples of sequential circuits are flip-flop, register, counter, clocks, etc. Computer circuits consist of combinational logic circuits and sequential logic circuits. Combinational circuits produce outputs immediately when their input changes. Sequential circuits require clocks to control their changes of state.

Is Flip-Flop a sequential circuit?

What are the differences between combinational and sequential circuits give an example of each type?

Combinational Circuit is the type of circuit in which output is independent of time and only relies on the input present at that particular instant. On other hand Sequential circuit is the type of circuit where output not only relies on the current input but also depends on the previous output.

What are the characteristics of combinational logic?

Combinational Circuits

The output of combinational circuit at any instant of time, depends only on the levels present at input terminals.
The combinational circuit do not use any memory.
A combinational circuit can have an n number of inputs and m number of outputs.

What is combinational logic and sequential logic?
