What is the difference between VFD and VSD?

What is the difference between VFD and VSD?

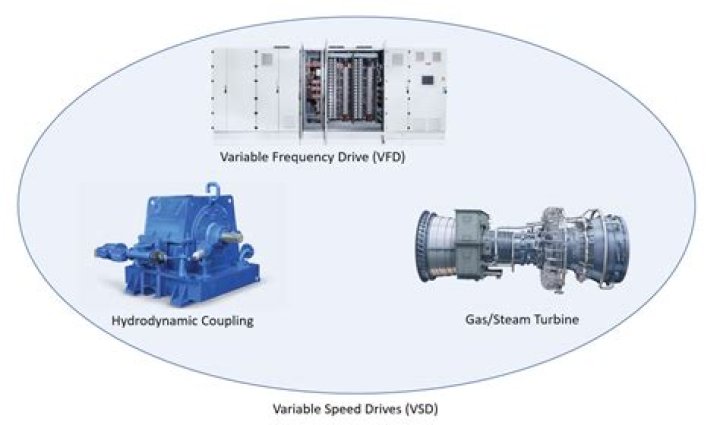

A variable frequency drive (VFD) refers to AC drives only and a variable speed drive (VSD) refers to either AC Drives or DC Drives. VFDs vary the speed of an AC motor by varying the frequency to the motor. VSDs referring to DC motors vary the speed by varying the voltage to the motor.

What is the difference between soft starter and VSD?

The difference is the speed that the motor can run when at full speed. With a VSD (Variable Speed Drive) or VFD (Variable Frequency Drive), the motor will soft start, and you can vary the speed of the motor by varying the output frequency from the VSD or VFD.

Is starter required with VFD?

Electrical engineers recommend soft starters when motors only need a starting system, and VFDs when motors also need speed control while operating. A soft starter cannot save energy by ramping down a motor with variable load, and a VFD wastes its speed control capacity when used only as a starter.

Can VFD reduce starting current?

VFDs deliver much higher frequency source power during startup to reduce current due to the increased inductive impedance. This can be advantageous if control is desired after full speed is reached. VFDs are more efficient and produce less heat, while being able to start motors under considerable loads.

Can you use a VFD on a DC motor?

– Variable speed drives (VSDs): These drives change the speed of a motor by changing the input voltage and can be used with both AC and DC motors. VFDs control the frequency and voltage of the AC signal.

Which is better soft starter or VFD?

The main difference between the two is that a VFD can vary the speed of a motor while a soft starter only controls the starting and stopping of that motor. When faced with an application, price and size are in the favor of a soft starter. A VFD is the better choice if speed control is required.

Does voltage change in a VFD?

A variable frequency drive (VFD) transforms the input mains of constant voltage and frequency into a voltage and frequency range that can be varied to control motor torque. Troubleshooting at the input starts with testing power and supply.

What is starting current of VFD?

Starting current varies based on the motor design. Premium efficiency motors may have starting current as high as 10–12 times rated current. High voltage motors may have as low as 5 times rated current (designed to limit the starting voltage drop).

What is the starting current for soft starter?

For this motor, the initial current when it is started is 600 percent, or six times the motor’s full load current rating . The soft starter can be set to reduce this current, for example, in this case, to 300% . This limits the inrush current on the utility line .

Is frequency converter and VFD same?

A digital phase converter uses a rectifier and inverter to create a single voltage with power electronics, which is added to the two legs of the single-phase source to create three-phase power. Unlike a VFD, it cannot vary the frequency and motor speed.
