What is the output voltage of thermocouple?
What is the output voltage of thermocouple?
Vt = (Vout / 105.14) – 0.004632. Where Vout is the module output voltage in volts and Vt is the thermocouple voltage referenced to a 0°C cold junction; that is, the voltage given in published tables….Thermocouple Voltage-to-Temperature Conversion Method.
| Temperature Input | Voltage Output |
|---|---|
| -100°C | 0VDC |
| +1350°C | +5VDC |
What is the output from a thermocouple?
The output from a thermocouple is small, of the order of millivolts for a 10°C temperature difference, and Fig. 1.3 shows typical sensitivity and useful range for a variety of the common types. Of these, the copper/constantan type is used mainly for the lower range of temperatures and the platinum!
How do you test the output voltage of a thermocouple?
Attach one of the crocodile clips to the screw that extends from the adapter, and the other one to the exposed end of the thermocouple. Select the millivolt reading option in the multimeter, and turn on the appliance. Ideally, the reading should range between 12 mV to 15 mV.
Does a thermocouple produce AC or DC voltage?
Figure4 shows also the filtering and amplification of the thermocouple. Being the thermocouple voltage a DC signal, removal of AC noise through filtering is beneficial; furthermore the thermocouples produce voltage of few tens of mV and for this reason amplification is required.
What is the range of thermocouple?
Difference in Thermocouple Types
| Calibration | Temperature Range | Standard Limits of Error |
|---|---|---|
| J | 0° to 750°C (32° to 1382°F) | Greater of 2.2°C or 0.75% |
| K | -200° to 1250°C (-328° to 2282°F) | Greater of 2.2°C or 0.75% |
| E | -200° to 900°C (-328° to 1652°F) | Greater of 1.7°C or 0.5% |
| T | -250° to 350°C (-418° to 662°F) | Greater of 1.0°C or 0.75% |
Does thermocouple produce DC voltage?
What is the input and output of thermocouple?
Thermocouple transmitters convert Type J, K, T, E, R, S, B, or N thermocouple sensor input signals to 4-20mA or 0-10V DC outputs for interfacing to controllers or other instrumentation.
How is voltage generated in a thermocouple?
When two dissimilar metal wires are joined, the difference in the energy levels of the electrons in each metal causes electrons to migrate from one metal to the other and a voltage (EMF) develops. This voltage is dependent on temperature.
How many millivolts should a thermopile produce?
A healthy thermopile in an open circuit test will read between 650 to 850 millivolts or somewhere in between. If the open-circuit test reads below 400 millivolts, then the thermopile likely requires service or replacement.
How does a thermocouple measure temperature?

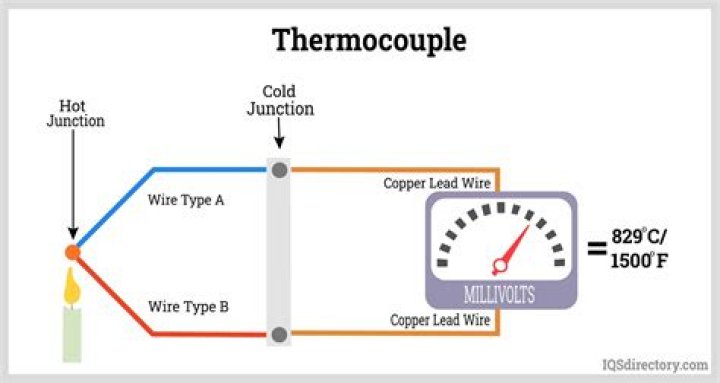

A thermocouple is a device for measuring temperature. It comprises two dissimilar metallic wires joined together to form a junction. When the junction is heated or cooled, a small voltage is generated in the electrical circuit of the thermocouple which can be measured, and this corresponds to temperature.
How many millivolts should a thermocouple produce?
Thermocouples designed for residential gas appliances, such as fireplaces, water heaters and furnaces, are made for 30 Millivolts. The reading should be between 25 and 30. Anything under or hovering around the 20 millivolts mark means the thermocouple needs to be replaced.
