What is the role of Stigmator in electron beam lithography?
What is the role of Stigmator in electron beam lithography?

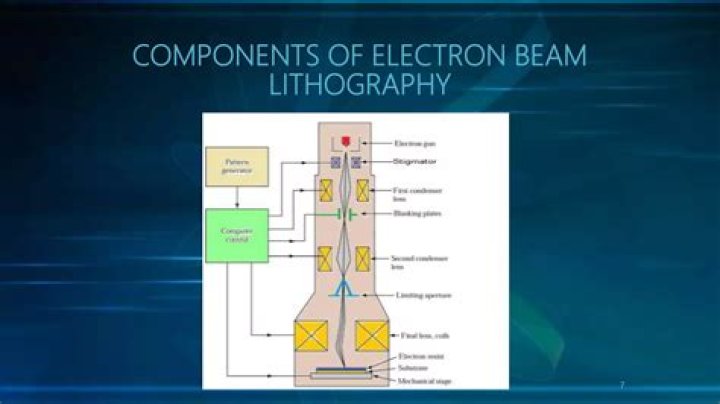

A stigmator is a component of electron microscopes that reduces astigmatism of the beam by imposing a weak electric or magnetic quadrupole field on the electron beam.
Why is e beam lithography slow?
The smaller field of electron beam writing makes for very slow pattern generation compared with photolithography (the current standard) because more exposure fields must be scanned to form the final pattern area (≤mm2 for electron beam vs. ≥40 mm2 for an optical mask projection scanner).
How does electron beam welding work?
Electron beam (EB) welding is a fusion welding process whereby electrons are generated by an electron gun and accelerated to high speeds using electrical fields. The beam of electrons creates kinetic heat as it impacts with the workpieces, causing them to melt and bond together.
What is astigmatism in tem?
Astigmatism is an aberration of lenses that causes rays in a plane parallel to the optical axis to be focused at a different focal point from rays in a plane at 90° to it. In the TEM, both the condenser and objective lenses are affected by astigmatism.
When was electron beam lithography invented?
1.129. EBL was first reported as a technique for patterning substrate materials as early as the 1960s150,151 and has been used for patterning nano- to micron-scale features for cell studies for the past 20 years.
How much does an electron beam welder make?
While ZipRecruiter is seeing annual salaries as high as $71,000 and as low as $27,000, the majority of Electron Beam Welder salaries currently range between $38,000 (25th percentile) to $54,000 (75th percentile) with top earners (90th percentile) making $60,500 annually across the United States.
What type of job welding is not possible in electron beam welding?
Not all materials can be welded by an electron beam in a vacuum. This technology cannot be applied to materials with high vapour pressure at the melting temperature, like zinc, cadmium, magnesium and practically all non-metals.
How is SEM astigmatism corrected?
Astigmatism can be corrected by adjusting the stigma X and stigma Y controls on the SEM. Each stigma controls the magnitude and direction of the current through the coils.
What is defocus in cryo-em?
Cryo-EM images are typically acquired using defocus contrast. This is a primitive form of phase-contrast imaging where the microscope’s objective lens is intentionally focused beyond the specimen by a distance of a few microns.
