What is the significance of a three-state buffer gate?
What is the significance of a three-state buffer gate?

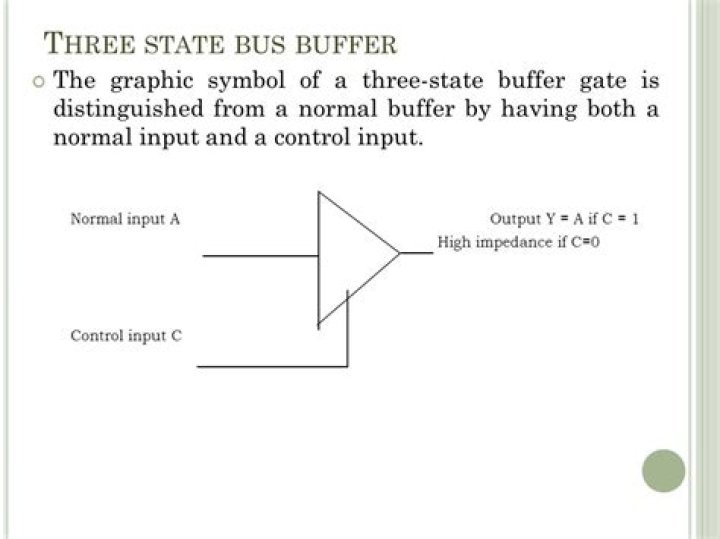

A tri-state buffer is similar to a buffer, but it adds an additional “enable” input that controls whether the primary input is passed to its output or not. If the “enable” inputs signal is true, the tri-state buffer behaves like a normal buffer.
What is a three-state gate?
Tri-state gates have additional circuitry via which the gate outputs can be enabled or disabled. This is very useful in digital systems where devices communicate via common wires called busses. Only one device can talk at a time; the others are disabled.
What is a buffer gate?
The Buffer Gate is a logic block that takes any input and compares the value to 0. If the input signal is zero, the output will be zero. This block is not an audio buffer; this block follows the gate logic of a buffer which acts as a double inversion.
What is a three-state gate and explain each type of three-state gate with truth tables?
As in a conventional gate, 1 and 0 are two states. The third state is a high impedance state. The third state behaves like an open circuit. If the output is not connected, then there is no logical significance.
What is a tri-state buffer how and why is it used?
The Tri-state Buffer is used in many electronic and microprocessor circuits as they allow multiple logic devices to be connected to the same wire or bus without damage or loss of data. For example, suppose we have a data line or data bus with some memory, peripherals, I/O or a CPU connected to it.
How do you make a buffer gate?
When the input is 2 1s, the output is a 0. By tying the inputs together on a NAND gate, we naturally form an inverter circuit. By connecting 2 inverters together, we produce the original signal and have created a buffer….How to Build a Buffer with a NAND Gate Chip.
| NAND Gate Logic | ||
|---|---|---|
| Inputs | Output | |
| 1 | 0 | 1 |
| 1 | 1 | 0 |
What is buffer in not gate?
A buffer has only a single input and a single output with behavior that is the opposite of an NOT gate. It simply passes its input, unchanged, to its output. In a boolean logic simulator, a buffer is mainly used to increase propagation delay.
What is high impedance state in 3 state buffer explain 3 state Gate in detail?
As in a conventional gate, 1 and 0 are two states. The third state is a high impedance state. The third state behaves like an open circuit. If the output is not connected, then there is no logical significance. It may perform any type of conventional logic operations such as AND, OR, NAND, etc.
What is the buffer gate?
