What is the standard for hydraulic symbols?
What is the standard for hydraulic symbols?
ISO 1219-1:2012
Hydraulic symbols are issued and controlled by The International Standards Organization (ISO), standard ISO 1219-1:2012. The symbols do not identify component size or their actual position on the machine, however the symbols do provide vital information relating to the configurations and flow path connections.
What are fluid power symbols?
Fluid Power Symbols. Circles generally represent devices that can deliver or use oil. Notice that the symbol does not describe the component construction. Symbols describe component functions only.
What is the symbol for a hydraulic pump?

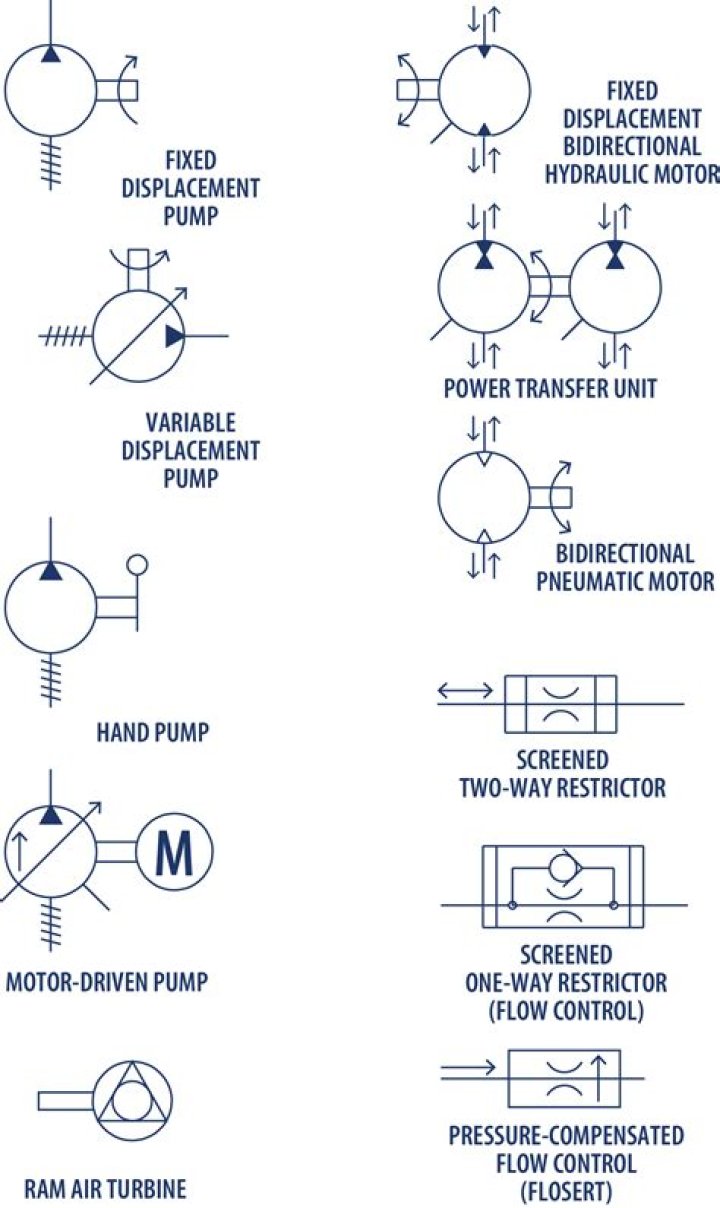

The base symbol for the hydraulic pump (Figure 1) is actually quite simple. It starts with the standard circle and a directional arrow pointing out one end from within that circle. The solid-filled triangle makes this a hydraulic pump while pneumatic pumps (and most pneumatic symbols) are outlines only.
What is Hydraulic and Pneumatic?
Fluid power system includes a hydraulic system (hydra meaning water in Greek) and a pneumatic system (pneuma meaning air in Greek). Oil hydraulic employs pressurized liquid petroleum oils and synthetic oils, and pneumatic employs compressed air that is released to the atmosphere after performing the work.
What are hydraulic and pneumatic systems?
Both pneumatics and hydraulics are applications of fluid power. Pneumatics use an easily compressible gas such as air or other sorts of suitable pure gas—while hydraulics uses relatively incompressible liquid media such as hydraulic or mineral oil, ethylene glycol, water, or high temperature fire-resistant fluids.
What are the 5 basic components of a hydraulic system?
Name the five components that make up a hydraulic system. Selector valve, hydraulic lines, actuating units, reservoir, and pump.
What is hydraulic drawing?
Hydraulic Pipes Hydraulic flow lines are depicted as single straight lines for both pressure and return lines. Pilot flow lines are drawn as dashed or dotted lines. They only transmit pressure feed or small pilot flows. Manifold and assembly boundaries are alternating dash lines.
