What is the transfer function of second order system?
What is the transfer function of second order system?

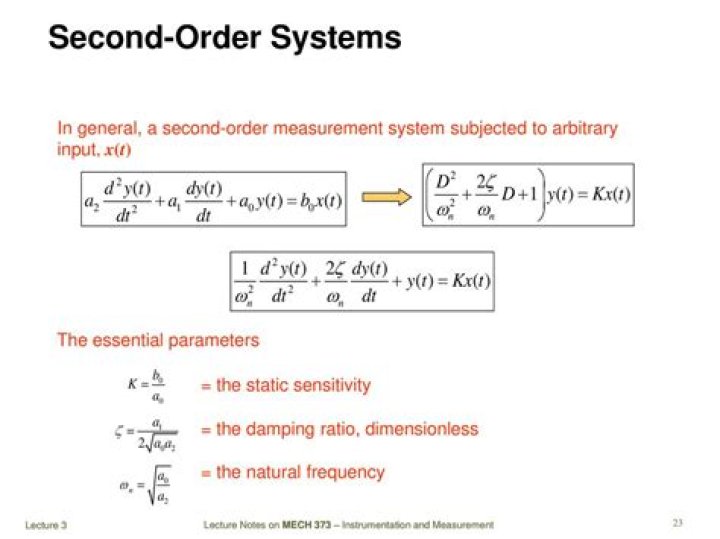

The transfer function of the general second-order system has two poles in one of three configurations: both poles can be real-valued, and on the negative real axis, they can form a double-pole on the negative real axis, or they can form a complex conjugate pole pair.
How do you identify a transient response from a transfer function?
Example: Complete Response from Transfer Function
- First find the zero state solution. Take the inverse Laplace Transform:
- Now, find the zero input solution:
- The complete response is just the sum of the zero state and zero input response.
What is second order system in control system?
The order of a control system is determined by the power of ‘s’ in the denominator of its transfer function. If the power of s in the denominator of the transfer function of a control system is 2, then the system is said to be second order control system.
What is second order system response?
A second-order linear system is a common description of many dynamic processes. The response depends on whether it is an overdamped, critically damped, or underdamped second order system. The four parameters are the gain Kp , damping factor ζ , second order time constant τs , and dead time θp . …
What is 2nd order control system?
What is Zeta in second order system?
The damping ratio is a parameter, usually denoted by ζ (Greek letter zeta), that characterizes the frequency response of a second-order ordinary differential equation. It is particularly important in the study of control theory. It is also important in the harmonic oscillator.
What is the order of a transfer function?
For given a transfer function G(S)=K(S+Zi)/(S^n)(S+Pj) where Zi represents zero’s and Pi represent poles of G(S). The Order is defined as maximum power of S in denominator. The Type is defined by value of n in denominator, ie. no of poles at origin only.
