What is the use of D arsonval galvanometer?
What is the use of D arsonval galvanometer?
D’Arsonval Galvanometer: Used to measure small voltage and current in the circuit. It is a center zero value measuring instrument. Advantages of placing iron core between the permanent magnet pole faces: Provides the uniform air gap between the coil sides and pole faces.
What is a galvanometer device?
galvanometer, instrument for measuring a small electrical current or a function of the current by deflection of a moving coil. The deflection is a mechanical rotation derived from forces resulting from the current.
What is D arsonval principle?
D’Arsonval Meter Movement Principle When a current passes through the moving coil, a magnetic field is produced. This field reacts with the stationary field and causes rotation (deflection) of the needle. This deflection force is proportional to the strength of the current flowing in the moving coil.

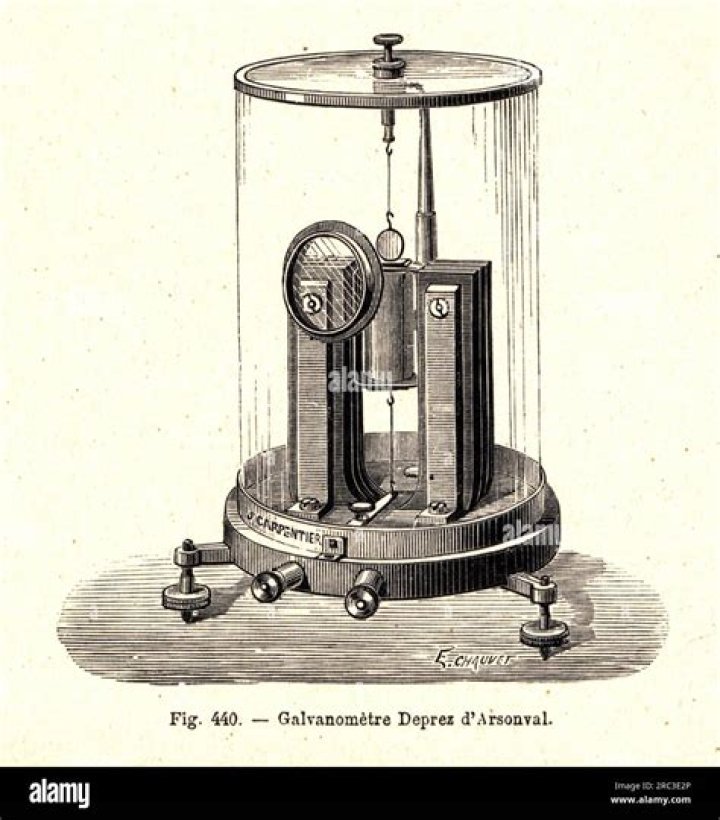

What is arsonval galvanometer?
Definition of d’arsonval galvanometer : a moving-coil galvanometer whose coil is provided with a filament suspension or with pivots and hairspring and rotates about a stationary soft-iron core between the poles of a strong permanent magnet.
What is D arsonval meter?
Remember that the D’Arsonval movement is a DC device and can only measure DC current or AC current rectified to DC. Electrodynamometer Movement. The electrodynamometer movement (Figure 2) has the same basic operating principle as the D’Arsonval meter movement, except that the permanent magnet is replaced by fixed coils …
Who uses galvanometer?
A galvanometer is mainly used in various electrical circuits for detecting current as well as in experiments to decide the null point. If a heavy current flows through the coil in the galvanometer, then the pointer in this may strike the stop pin because of very large deflection.
How does a galvanometer deflect?
When the magnet is moved away from the coil, the galvanometer shows deflection in the opposite direction indicating the direction of induced current in the reversed direction. The direction of deflection in a galvanometer is reversed if the direction of motion (or polarity of the magnet) is reversed.
How can the D arsonval meter movement be used to measure voltage?
The Voltmeter A voltmeter can be constructed by placing a resistor in series with a d’Arsonval movement. This makes a simple voltage divider. Using Ohm’s Law, this gives us a resistance of 149,950 ohms. Voltmeters are connected in parallel with the device being measured.
How can the basic D arsonval meter movement be used to measure currents?
In the d’Arsonval meter movement, current through the coil causes the coil to move in the magnetic field of the permanent magnet. This movement of the coil (conductor) through a magnetic field causes a current to be induced in the coil opposite to the current that caused the movement of the coil.
