What is virtual ground circuit?

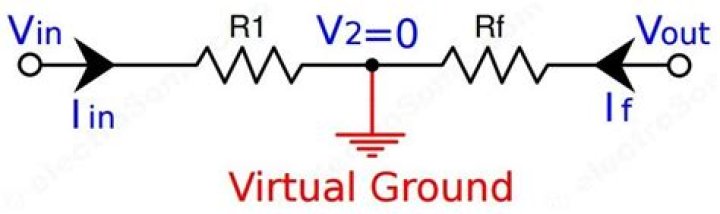

In electronics, a virtual ground (or virtual earth) is a node of a circuit that is maintained at a steady reference potential, without being connected directly to the reference potential.
What is the difference between virtual ground and actual ground?
What is the Difference Between Real Ground and Virtual Ground? Real ground is when a terminal is connected physically to the ground or earth. where as virtual ground is a concept used in Op-Amps in which a node is assumed to have the potential that of the ground terminal.
Can current flow through a virtual ground?
A virtual ground in electronics is defined as a node of circuit that is maintained at a steady reference potential, without being directly connected to the reference potential. And hence we know that current cannot flow through a virtual ground, unlike the other options given.
How does a virtual ground work?
In opamps the term virtual ground means that the voltage at that particular node is almost equal to ground voltage (0V). It is not physically connected to ground. This concept is very useful in analysis of opamp circuits and it will make a lot of calculations very simple.
Why do op amps have virtual ground?
One key feature of an Op Amp is the differential input, and when put together in a circuit, this can form a virtual ground. The virtual ground concept is helpful for the analysis of Op Amps. This kind of Op Amp cannot generate a ‘negative’ voltage at the output since it has a unipolar power supply (0 to Vcc).
What is ideal value of slew rate?
A. Infinite. Hence it has an infinite slew rate. That means it can provide output voltage simultaneously with the input voltage changes.
Why virtual short is not applicable for positive feedback?
In positive feedback difference between non-inv and inv terminals does not decrease , instead it keeps increase and makes the opamp sit at positive saturation. so , in Positive feedback virtual short is not applicable.
What is input offset current?
The input offset current (IOS) is equal to the difference between the input bias current at the non-inverting terminal (IB+) minus the input bias current at the inverting (IB- ) terminal of the amplifier. Offset current is typically an order of magnitude less than bias current.
Why is virtual ground concept applied in op amp instead of using a ground pin?
This concept makes Op Amp circuit analysis much easier. An Op Amp inverting input (-) is at zero potential (A virtual ground), even though it does not have a galvanic connection to ground. This is because of feedback due to R2 and the high gain of the Op Amp.
What is the difference between virtual short and virtual ground?
A virtual short-circuit (or simply virtual short) refers to a condition of a differential input amplifier such as an op-amp in which its noninverting and inverting inputs have almost the same voltage. When the input terminal on one side is grounded to GND as shown in the figure, it is sometimes called virtual ground.
What does high slew rate mean?
Slew Rate # : Closely related to power bandwidth, the slew rate is the maximum rate of change (measured in Volts per microsecond) of the amplifier output. The higher the amplifier power, the higher the slew rate must be to obtain the same power bandwidth.
