What parts are included in the vehicle chassis?
What parts are included in the vehicle chassis?

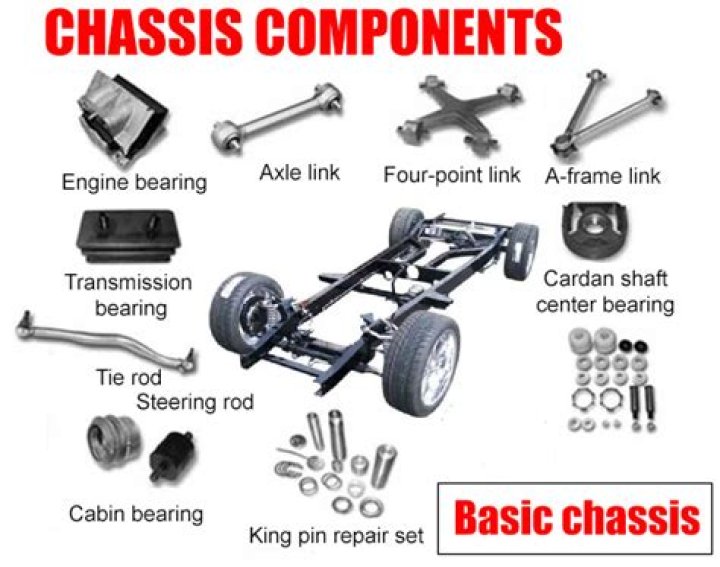

Every major part of a vehicle is collectively called chassis. It includes wheels, brakes, suspension systems, axles, engine, etc. Knowing about your vehicle is incredibly important when it comes to caring for and maintaining it properly. If there’s one part of your car you should understand better, it’s the chassis.
What holds a unibody car together?
(A) Unibody construction welds major body panels together to form the frame for attaching the engine, drivetrain, suspension, and other parts. This type of construction is commonly used on cars. Figure 9-7. The suspension and braking systems bolt directly to the body on a vehicle with unitized construction.
What are the basic unibody structures?
The components are the radiator support, front and rear unirails, apron and wheelhouse (strut type) assemblies, rocker panel assemblies and suspension crossmembers. Body pillars, while not primary load-bearing structures, also require special treatment and are considered structural components.
How do you reinforce a unibody chassis?
Unibody chassis stiffening can be done in a number of ways. Another way is to relocate the factory leaf springs, if they are present. Stiffer radiator supports and torque boxes, strut bars and fender ties are also added to help reinforce weaker points of the unibody.
What is a car casing?
Image by Flickr.com, courtesy of Adam Pniak. An engine casing is an important protective part of an engine that helps keep things from getting sucked or tangled in the engine components. Engine casings are widely used to protect and house even the simplest engine.
Does a unibody car have a frame?
Unibody Design Unibody designs have the frame integrated into the body construction. Instead of a steel ladder frame under the vehicle, every body panel provides part of the structural design. Because there is no need for a heavy steel frame, unibody cars are much lighter.
Is a unibody a frame?
The difference between unibody and body-on-frame vehicles is fairly straight forward. Unibody vehicles have the chassis and body of the car together. A body on frame vehicle has a frame which the vehicle stresses pass through, and the body of the car rests on top of this.
What is unibody car construction?
The terms “unibody” and “unit-body” are short for “unitized body”, “unitary construction”, or alternatively (fully) integrated body and frame/chassis. It is defined as: A type of body/frame construction in which the body of the vehicle, its floor plan and chassis form a single structure.
What are the types of frame in automobile?
There are three types of frames : (a) Conventional frame, (b) Semi-integral frame, and (c) Integral frame (or unit frme). It is non-load carrying frame. The loads of the vehicle are transferred to the suspensions by the frame.
Can you weld a unibody?
Unibody vehicles are designed for maximum occupant protection and have crush zones that disperse the energy or impact of a collision. These frames are built with steel that has a high strength to weight ratio and so, just any welding technique cannot be used to repair unibody frame cracks or damage.
How can I make my chassis stronger?
A weld-in roll cage or stitch welding the chassis are proven ways to increase the rigidity of a chassis. However, neither is practical for most street cars. Instead, practical solutions come in the form of “bolt-on” strut tower braces, chassis braces and bolt-in roll bars.
