What PCIe lanes do I use?
What PCIe lanes do I use?

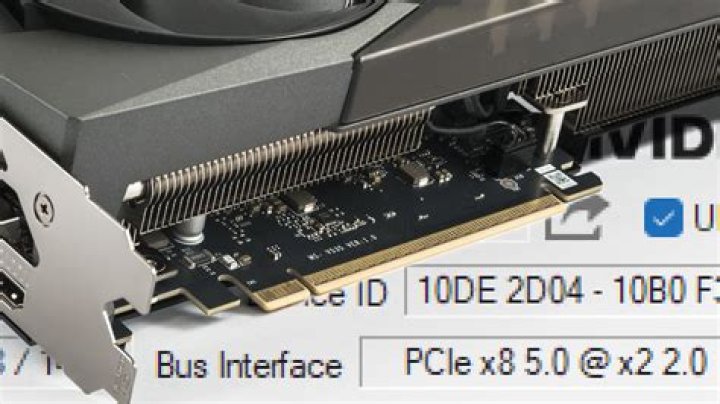

Most GPUs use 16 PCIe 3.0 Lanes, while newer GPUs can use 16 PCIe 4.0 Lanes.
How many PCIe lanes does a Ryzen 5 3600 have?
24 lanes
That means the Ryzen 5 3600 has the same six-core 12-thread design, 32MB of L3 cache, and access to 24 lanes of PCIe 4.0, with the only tradeoff being a step back to the 65W Wraith Stealth cooler, while the 3600X comes with the more-capable 95W Wraith Spire cooler.
Does M 2 use PCIe lanes?
The M. 2 specification provides up to four PCI Express lanes and one logical SATA 3.0 (6 Gbit/s) port, and exposes them through the same connector so both PCI Express and SATA storage devices may exist in the form of M. 2 modules.
Can I plug PCIe into PCI?
The answer is no. PCIe and PCI are not compatible with each other due to their different configurations. In most cases, there are both PCI and PCIe slots on the motherboard, so please fit the card into its matching slot and do not misuse the two types.
Can PCIe 1x fit in 4x?
Yes, you can fit a PCIe x1 card in an x4 slot. Thanks to the cross-compatibility of the PCIe slots and the way the standard is designed, smaller cards can be installed into larger slots and vice versa.
How many PCIe lanes does Ryzen?
The amount of PCIe lanes on AMD Ryzen CPUs range from 24 on an consumer grade Ryzen 3, 5, 7 and 9 CPUs all the way to 128 on workstation grade Ryzen Threadripper CPUs. The popular desktop Ryzen series i.e 3000 and 5000, have 24 lanes.
Is Ryzen 3600 still good?
The best gaming CPU is the AMD Ryzen 5 3600. The AMD Ryzen 5 3600 isn’t just a great gaming CPU with serious multi-threading chops, it’s also incredibly good value. And its multi-core/threaded performance makes it a great performer in areas other than gaming, too.
How many PCI lanes does NVMe use?
NVMe drives are so much faster than SATA drives. PCIe 3.0 — the PCI Express standard current generation — has a maximum speed transfer of 985 megabytes per second (Mbps) on each path. NVMe Drives can use 4 PCIe lanes, which means a theoretical maximum speed of 3.9 Gbps (3,940 Mbps).
Do SATA drives use PCIe lanes?
SATA uses no PCIe lanes. It is totally independent protocol.
Can PCIe 1x fit in PCI slot?
A PCIe x1 card can be plugged into any larger PCIe slot and it will work just fine. Whether this is advisable or not is another question which we will explore below. PCIe standard is not only cross compatible but also backwards compatible.
