What size is KF40?
What size is KF40?

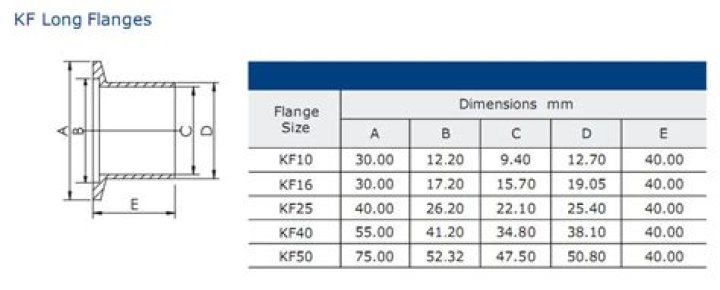

Dimensions
| KF16/30mm | Tube OD: 3/4″, Flange OD: 1.18″ |
|---|---|
| KF25/40mm | Tube OD: 1″, Flange OD: 1.57″ |
| KF40/55mm | Tube OD: 1-1/2″, Flange OD: 2.16″ |
| KF50/75mm | Tube OD: 2″, Flange OD: 2.95″ |
What is NW size?
The ISO standard quick release flange is known by the names Quick Flange (QF), Klein Flansche (KF, German which translates to “Small flange” in English) or NW, sometimes also as DN. Standard sizes are indicated by the nominal inner diameter in millimeters for flanges 10 through 50 mm in diameter.
What is a KF fitting?
KF flanges are a sexless design made from 304 stainless. Also known as ISO, DIN, Pneurop, Quick Flange, Klein Flange, Dell Flange and Kwik-Flange. The seal is a rubber/ elastomeric o-ring mounted in a centering ring, which aligns the flanges and holds the o-ring in position.
How does a KF flange work?
These KF flanges are ISO-standardized vacuum fittings that can be mated to a vacuum system using a wing nut clamp and an O-ring carrier (sold below). The angled sides of the wing nut clamp compress the O-ring between the flanges, quickly creating a vacuum seal.
What is KF 40?
These KF-40 Hinge Clamp vacuum fittings follow ISO-KF standards and have a flange size of NW-40. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble.
What is NW fitting?
NW fittings are the industry standard for vacuum components in the low and medium vacuum range and can be found on a variety of equipment.
Are KF and NW flanges the same?
NW (also known as KF & QF) NW Vacuum Hardware is known also as KF and QF. NW Vacuum Flanges and Fittings are quick release and are great in rough vacuum to high vacuum applications. NW Fittings are quick and easy to use and assemble into a vacuum system.
What is a KF clamp?
KF Clamp offered by us are used in rough to high vacuum installations. These clamps are designed in accordance of international standards, consists of two symmetrical flanges, a center ring to support and positioning “O”-ring, and a clamp which allows assembly without any tools.
What is CF gasket?
ConFlat (CF) fittings are flanges which utilize metal seals to attain vacuum conditions. The combination of a stainless-steel knife-edge flange and a copper gasket (OFHC) makes for a nearly impenetrable vacuum barrier. This guarantees a strong and uniform seal over the copper gaskets.
