What size wire is needed for 600 amps?
What size wire is needed for 600 amps?
For 600 amp you will need a 1500 kcmil-gauge wire.
How many ground rods do I need for 600 amp service?
two ground rods
600, 800, 1200, 480 3 phase temp services have only two ground rods.
How many amps is parallel 350?
The ampacity of a 350 kcmil conductor, from the 75°C column of Table 310.15(B)(16), is 310A. Four sets of conductors in parallel have an ampacity of 1,240A (310 × 4 = 1,240).
How many amps is 1 ought WIRE good for?

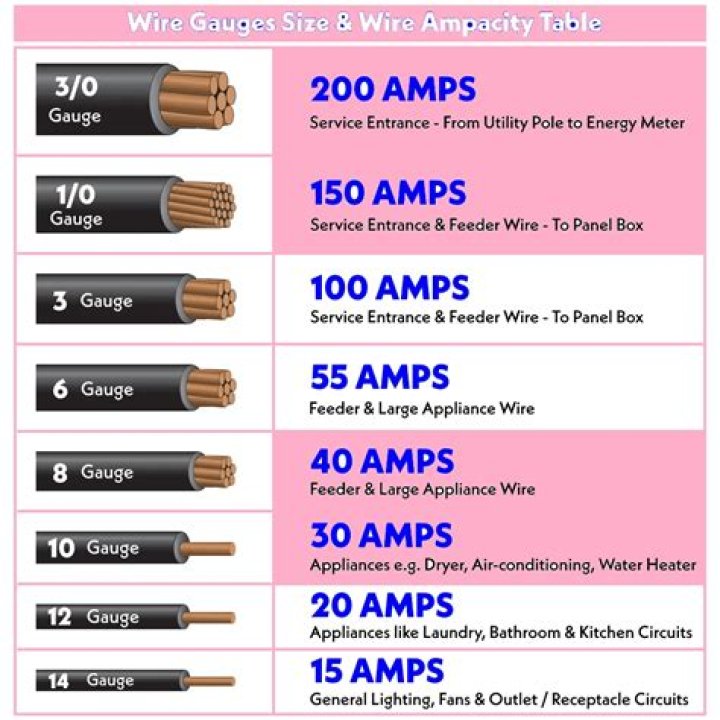

Wire Size and Amp Ratings
| Wire Size | 75°C (167°F) | |
|---|---|---|
| AWG | (mm²) | Copper |
| 1 | (42.4) | 130 |
| 1/0 | (53.5) | 150 |
| 2/0 | (67.4) | 175 |
What size Ufer do I need?
20 ft
The requirements for a concrete-encased electrode, commonly called a “Ufer Ground” are included in 250.52(A)(3). This is an electrode developed by using electrically conductive reinforcing bars or bare copper conductors not smaller than 4 AWG at least 20 ft in length.
How many ground rods are needed for a 400 amp service?
Two ground rods
Two ground rods should be at least 6′ apart. The ground wire should be 1/0 copper with a rod 4 to 6 below grade. It’s possible that the conductors for 400 Amp services are 400 cir.
How many amps will 500 mcm carry?
Related Resources
| Size | Temperature Rating of Copper Conductor | |
|---|---|---|
| (AWG or kcmil) | 60°C (140°F) | 90°C (194°F) |
| 400 KCMIL | 280 | 380 |
| 500 KCMIL | 320 | 430 |
| 600 KCMIL | 350 | 475 |
What wire do you use for a 200 amp service?
Installation of 200 amp electrical service needs a #2/0 AWG copper wire or #4/0 AWG for aluminum or copper-clad wire inside a 3″ conduit. Wiring a 200 amp electrical service is not a DIY job. It often requires a permit and professional installation by a qualified electrician following local electrical codes.
What is 600 mcm rated for?
Related Resources
| Size | Temperature Rating of Copper Conductor | |
|---|---|---|
| (AWG or kcmil) | 60°C (140°F) | 90°C (194°F) |
| 600 KCMIL | 350 | 475 |
| 700 KCMIL | 385 | 520 |
| 750 KCMIL | 400 | 535 |
What is the minimum size feeder conductor for a parallel feeder?
1/0 AWG
Parallel conductor installations are covered in NEC 310.10(H) and are permitted for each phase, polarity, neutral, or grounded conductor in sizes 1/0 AWG and larger. Joining conductors in parallel is like having two or more smaller conductors connected at each end to make one larger conductor.
