What width does metal roofing come in

Most metal roof and metal siding panels on the market are between 20- 29 gauge, with 20-gauge being the thickest and 29-gauge being the thinnest panels sold. These numbers refer to the decimal thickness of the steel and they have a range. For Example, 26 gauge could be a steel as light as .

How wide are sheets of metal roofing?

Standard sheets in the U.S are 36 inches wide but the length can vary. Determine the overlap required so that each roofing sheet can rest on the adjacent sheet to avoid gaps in the roof. This value varies according to roof angle, local climate, type of sheet and exposure to the wind.

How wide is corrugated metal roofing?

The two most common widths are 26 and 36 inches. Other standard widths include 24 and 39 inches. When calculating coverage using the width and length of corrugated roofing, keep in mind that each piece will need to overlap by several inches.

What is the standard size for metal roofing?

The most common gauges for metal roofing are 29, 26, 24, and 22 gauge.

How many inches do you overlap metal roofing?

Install Metal Panels Align the first metal roofing panel so that it overlaps the edging by 1/2 to 3/4 of an inch and is square to the roof line. Be sure the larger edge is laid so that the small edge of the next panel will overlap it.

How wide is a corrugated sheet?

The actual sheet width of corrugated sheets is 850mm.

What is the width of corrugated iron sheets?

Corrugated can be cranked, curved and bullnosed to customer specifications. The overall width of an 8.5 Corrugated sheet is 700 mm and a 10.5 Corrugated sheet is 840 mm.

How thick is a metal roof?

Most metal roof and metal siding panels on the market are between 20- 29 gauge, with 20-gauge being the thickest and 29-gauge being the thinnest panels sold. These numbers refer to the decimal thickness of the steel and they have a range.

How do you measure a roof for metal roofing?

Determine the length of the metal panels needed for one side of your roof by measuring from the fascia board (the board attached to your roof joists) to the ridge (the peak) of the roof. For example, your roof could measure 12 feet to its peak. This number will tell you the total length of metal panels needed.

What is the standard size of a roofing sheet?

Blue MS Metal Roofing Sheet, Dimensions: 8 X 4 Feet, Thickness of Sheet: 2 to 3 mm.

Article first time published on

How wide is a sheet of zinc?

The . 030″ sheets are produced in one standard size of 39″ x 96″. Other sizes, such as 120” long, are available for special order.

Is a drip edge necessary on a metal roof?

A drip edge is not needed for metal roofing. If you make sure to overhang your metal roofing at least an inch, the drip edge is not necessary at the eaves and rakes. If the metal roof is hanging over an inch, the water will be directed away from the fascia anyway if at a slant.

How much should a metal roof overhang on a shed?

3: The panels at the eave side of the roof should overhang into the gutters 1 to 1-1/2 inches. If installing metal on a non gutter application you can overhang the panel up to 3 inches.

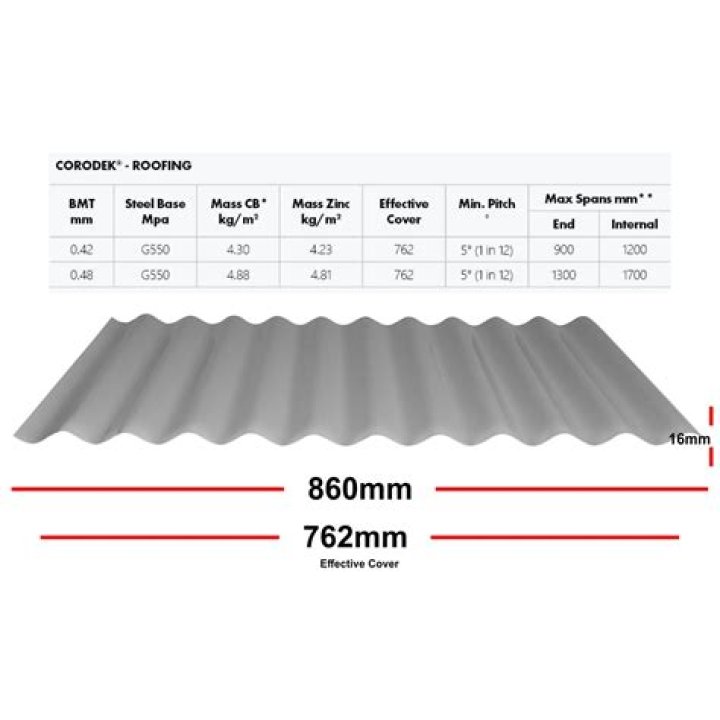

How wide is a Colorbond roof sheet?

762mm is the cover width which allows for 1.5 rib overlap. Thus, the actual single sheet width of the corrugated sheet is 850mm wide.

How much should a corrugated roof overlap?

The upper sheet should overlap the first by 6 inches. Fasten the sheet and complete the second row in the same manner as the first. Each sheet should overlap both the sheet below it and the sheet to the side.

How much should roof sheets overlap?

The product must be overlapped at the sides, not less than 1.5 corrugations. It is generally considered good practice to use fasteners along side-laps; however, when cladding is supported as indicated in maximum support spacings, side-lap fasteners are not usually needed for strength.

How wide is Zincalume?

Can be used in both roofing and walling applications and the wide cover (762mm) allows for quick installation, saving on both materials and labor. This versatile profile can be used on a minimum roof pitch of 5 degrees.

How much should corrugated sheets overlap?

Corrugated sheeting should always overlap by a minimum of one corrugation, this can be known as side laps. When overlapping corrugated sheeting its advised you use cladco lapping tape. For maximum sheet lengths in corrugated, we can supply 5m in a 0.5mm thickness and up to 6m length in the 0.7mm thickness.

What is the minimum pitch for a corrugated iron roof?

Corrugated roofing is a great material on traditional pitched roofs – but it has severe limitations when the pitch gets below 5 degrees. That is why all roofing manufacturers recommend the 5 degree pitch as the minimum slope and they will not provide any guarantees if it is installed flatter than this.

How do I figure out how many roofing sheets I need?

You divide Length with roofing clear span = number of sheets.

How do you calculate corrugated roof sheets?

1. Number of sheets for 8.5 Corrugated = Length of the building ÷ 0.610 mm.
2. Number of sheets for 10.5 Corrugated= Length of the building ÷ 0.762 mm.

How do you determine the pitch of a roof?

1. First, you need to measure the run of your roof. …
2. Next, you need to figure out the rise. …
3. Now, divide the rise by the run. …
4. Then, divide 1 by your tangent.
5. Finally, multiply this result by 180/π and you’ve calculated your roof pitch!

Which is thicker 28 or 26 gauge metal?

28 gauge steel has an average thickness of . 0187 (minimum . 0157) and 26 gauge is . 0217 (minimum .

Which is thicker 24 or 26 gauge metal?

Since 24-gauge is the thicker material, it’s also the heavier material compared to 26-gauge. A 24-gauge roofing panel weighs approximately 30% more than a 26-gauge panel.

Can you walk on a metal roof?

Most metal roofs are manufactured and installed in such a way as to be safe to walk across without the worry of damaging the roof. You might mark or scuff the finish or paint on your metal roof, but average foot traffic shouldn’t significantly impact the longevity or performance of your metal roof.

What roofing sheets are best?

• Foam-backed polycarbonate roof sheets are lightweight and durable. …
• Clear polycarbonate sheets are installed in patios, sunrooms and places that need natural light through the roof.

Is galvanized stronger than zinc plated?

Both zinc plating and galvanizing is an application of zinc plating. The big difference is thickness: zinc plating is normally 0.2 mils thick. Hot dip galvanizing might be 1.0 mil thick – you get over 5 times the protection with galvanizing. All true galvanizing is hot dip galvanizing.

How long does zinc roofing last?

What is the life span of a zinc roof? Usually the life span of zinc is over 100 years in an unpolluted urban environment and between 60 and 80 years in a marine atmosphere.

What is zinc roofing?

Zinc is an ideal standing seam roof material and can be applied to many different types of roof. It comes in natural (bright), pre-weathered and pigmented finishes. … These zinc sheets can be formed into shingles, cassette panels and flat-lock panels to clad any building-style.

Do I need furring strips under metal roof?

When installing a metal roof over an existing roof, insulate the spaces between the wood strips with rigid insulation to prevent condensation before installing the roofing. You also need to add furring strips. … Twenty-four inches is a common spacing of furring strips for a metal roof.

Does a metal roof affect insurance?

Metal. Metal roofing has a combination of positives that will not likely raise your home insurance rates. It handles rain, wind, hail and snow well, and is fire and rot-resistant, and has an average lifespan of 40 to 70 years.
