Which apparatus is used for distillation process?
Which apparatus is used for distillation process?
Thre are three essential pieces of distillation equipment needed to carry out the process; Reboiler or Pot – Used to heat the source liquid. Condenser – The heated vapour is cooled back to a liquid state. Receiver Flask – The device into which the concentrate/distillate is collected.
What equipment is typically used to generate vacuum in a vacuum distillation column?
The vacuum is produced through the use of steam ejectors or vacuum pumps pulling a vacuum on the top of the distillation column. Typical products from VDU, depending on the design, include an overhead stream, called light vacuum gas oil (LVGO).
What equipment is used in simple distillation?

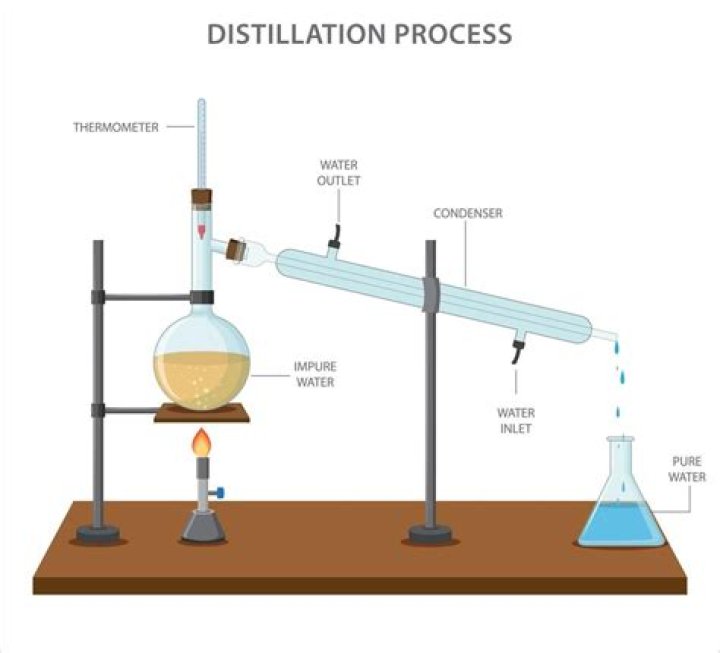

A simple distillation apparatus consists of a boiling flask (round-bottom flask) attached to an adapter holding a thermometer (to determine the boiling temperature of the liquid). The adapter connects to a condenser into which cold water is constantly passed through.
What is the procedure of vacuum distillation?
Vacuum distillation is the process of lowering the pressure in the column above the solvent to less than the vapor pressure of the mixture, creating a vacuum, and causing the elements with lower vapor pressures to evaporate off.
What are 4 pieces of equipment necessary for the process of distillation?
The device used in distillation, sometimes referred to as a still, consists at a minimum of a reboiler or pot in which the source material is heated, a condenser in which the heated vapor is cooled back to the liquid state, and a receiver in which the concentrated or purified liquid, called the distillate, is collected …
What is a reflux apparatus?
A reflux apparatus allows for facile heating of a solution, but without the loss of solvent that would result from heating in an open vessel. In a reflux setup, solvent vapors are trapped by the condenser, and the concentration of reactants remains constant throughout the process.
What is Adu and VDU?
About 80% of the refineries operating in the United States have a vacuum distillation unit (VDU), a secondary processing unit consisting of vacuum distillation columns. In the refining process, the atmospheric distillation unit (ADU) separates the lighter hydrocarbons from the heavier oils based on boiling point.
What is the purpose of the vacuum in vacuum distillation?
Distillation is the process of separating the components or substances from a liquid mixture. The process is based on differences in the relative volatility of the different components. In vacuum distillation, vacuum is used to lower the boiling point of the substances to be separated.
What are the apparatus used in fractional distillation?
Fractional distillation in a laboratory makes use of common laboratory glassware and apparatuses, typically including a Bunsen burner, a round-bottomed flask and a condenser, as well as the single-purpose fractionating column.
What is distillation machine?
Home > Water Distillers. Water distiller is a machine which is used to purify water using distillation process, which is related to first boiling impure water after that collecting condensed water in a separate container.
Why is a reflux apparatus used?
For example, this type of apparatus will be needed for several experiments in Chem 353. The “reflux apparatus” shown allows such heating; it allows the reaction to be carried out at the boiling point of the solvent and yet it prevents loss of solvent or reagent due to evaporation.
What is the principle of vacuum distillation?
The principles of vacuum distillation resemble those of fractional distillation (commonly called atmospheric distillation to distinguish it from the vacuum method), except that larger-diameter columns are used to maintain comparable vapour velocities at reduced operating pressures. A vacuum of 50 to 100 mm of mercury absolute is produced by a vacuum pump or steam ejector.
What equipment is used in distillation?
DISTILLATION EQUIPMENT. In addition to the stills, we fabricate all related stainless steel and copper equipment including fermenters, cookers, condensers, coolers, whiskey tanks, bottling tanks, etc. We are also a major supplier of equipment used in the distillation of industrial and power alcohol.
How does vacuum distillation work?
Vacuum distillation is a method of distillation performed under reduced pressure. As with distillation, this technique separates compounds based on differences in boiling points.
How is vacuum distillation carried out?
By enclosing a mixture in a distillation tank and reducing the pressure, volatile compounds are induced to evaporate from the mixture. The vapor is then captured and condensed back into a liquid. Vacuum distillation can be carried out on a small scale in a laboratory or on an industrial scale as is done in petroleum refineries.
