Which fiber has intermodal dispersion?
Which fiber has intermodal dispersion?
Intermodal dispersion in multimode fibers is minimized with the use of step-index fibers. Explanation: As multimode graded index fibers show substantial bandwidth improvement over multimode step index fibers. So, inter-modal dispersion in multimode fiber is minimized with the use of multimode graded index fibers. 9.
What is intermodal and intramodal dispersion?
Dispersion caused by multipath propagation of light energy is referred to as intermodal dispersion. Signal degradation occurs due to different values of group delay for each individual mode at a single frequency. In digital transmission, we use light pulse to transmit bit 1 and no pulse for bit 0.
What causes intermodal dispersion?
Intermodal dispersion occurs in multimode fibers because rays associated with different modes travel different effective distances through the optical fiber. This causes light in the different modes to spread out temporally as it travels along the fiber.
In which of the fibers intermodal dispersion is absent?
The main advantage of single-mode fibers is that intermodal dispersion is absent simply because the energy of the injected pulse is transported by a single mode.
How do you find intermodal dispersion?
Intermodal dispersion is defined as: Where dtmod=tmax-tmin, difference between higher and fundamental modes time propagation, L – fiber length. Figure 3.4 Illustration of different group velocity experienced by fundamental and the highest modes.
What type of fiber has the highest intermodal dispersion Mcq?
8) Which type of fiber has the highest modal dispersion? Modal dispersion depends on the length of the path i.e. the longer the path is, the higher the model dispersion will be. Step-index multimode has the highest modal dispersion.
How Intramodal dispersion occur in fiber?
In fiber-optic communication, an intramodal dispersion, is a category of dispersion that occurs within a single mode optical fiber. This dispersion mechanism is a result of material properties of optical fiber and applies to both single-mode and multi-mode fibers.
How do you calculate intermodal dispersion?
What are the types of intermodal dispersion?

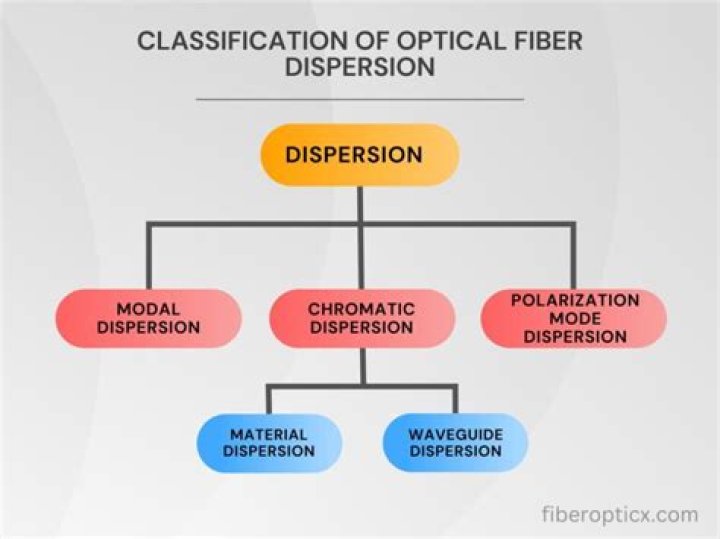

Two distinct types of intramodal dispersion are: chromatic dispersion and polarization mode dispersion.
- Chromatic dispersion.
- See also.
- References.
Which has low intermodal dispersion?
Single mode
Explanation: Single mode propagates only one wave or only one mode is transmitted. Therefore, intermodal dispersion is low in single mode. In multimode fibers, higher dispersion may occur due to varying group velocities of propagating modes.
What is intermodal dispersion observed in optical fiber?
Intermodal dispersion (also called modal dispersion) is the phenomenon that the group velocity of light propagating in a multimode fiber (or other waveguide) depends not only on the optical frequency (→ chromatic dispersion) but also on the propagation mode involved.
What is intermodal dispersion in optical fiber?
Intermodal dispersion (also called modal dispersion) is the phenomenon that the group velocity of light propagating in a multimode fiber (or other waveguide) depends not only on the optical frequency (→ chromatic dispersion) but also on the propagation mode involved.
What is the strength of intermodal dispersion?
The strength of intermodal dispersion can be quantified as the differential mode delay (DMD). It depends strongly on the refractive index profile of the fiber in and around the fiber core .
Why do graded index fibres offer less intermodal dispersion than multimode step fibers?
You can observe this phenomena in the diagram shown above. Because of this, intermodal dispersion is found more in multimode step index fibres. On the other hand, graded index fibres offer less intermodal dispersion as the refractive index of the core is not uniform in it.
What are graded index fiber optic fibers?
Graded-index designs are also sometimes used with other types of glass fibers, e.g. for mid-infrared fibers [8]. There are also plastic optical fibers (POF) having graded index profiles. They are often used in the same way, i.e., with the goal of minimizing intermodal dispersion effects in fiber-optic links.
