Which side of the radiator does the bleed valve go

Most radiators are bled using a radiator key but if you’re not sure, find a bleed valve. They’re located on the left or right side of the radiator at the top. A bleed valve on an older radiator looks like a hole with a square bit in the middle.

Which side of radiator does bleed valve fit?

Most radiators are bled using a radiator key but if you’re not sure, find a bleed valve. They’re located on the left or right side of the radiator at the top. A bleed valve on an older radiator looks like a hole with a square bit in the middle.

How do you bleed a radiator that doesn't have a bleed valve?

1. If you don’t have a specific radiator bleed key it’s still possible to bleed your radiators!
2. You can bleed radiators with a towel rail or compression joint easily with a wrench.
3. If your radiator has a hexagonal shaped valve you can use a spanner.

Should radiator valve be on inlet or outlet?

Many modern homes will have TRVs – Thermostatic Radiator Valves – attached to most of the radiators on the opposite side from the lockshield valves. A TRV should always be fitted to the inlet on the radiator and the LSV to the outlet.

What is lockshield valve?

Lockshield valves are the covered valves on a radiator, usually by a plastic cap which prevents them from being accidently altered. … When a radiator is taking too long to warm up it might need the lockshield opening to allow a greater flow of water through.

What size is a radiator bleed valve?

Castrads bleed valves can be used with a wide range of cast iron radiators. Most steel multicolumn radiators use half-inch 21mm BSP bleed valves.

How do self bleeding radiator valves work?

The first time your radiator fills with water, air is expelled through the valve until the water pushes on the underside of the mechanism, sealing it off completely. When the radiator heats up, the temperature of the Aladdin autovent rises and the water that has been absorbed by the washer evaporates through the cap.

Does it matter which way round a radiator goes?

A normal radiator or towel it doesn’t matter. If the radiator is not fitted, then the tails will not heat up. Fit the radiator, if it’s the wrong way round, all you have to do is swap the rad valves round – I think the instructions will just be referring to the TRV’s, nothing to do with the radiator itself.

Are radiator valves directional?

Most modern thermostatic radiator valves are bi-directional – so can be fitted on either the flow or return pipe of your radiator. However, it’s always best practice to fit the TRV on the flow pipe that enters your radiator.

What does the left valve on a radiator do?

One valve accounts for the amount of hot water that enters the radiator. The other valve, referred to as the lockshield valve, balances the system by regulating how much heat the radiator gives off.

Article first time published on

Do you bleed radiators upstairs or downstairs first?

The radiator to bleed first Making sure your central heating is switched off, you should start with a downstairs radiator that is the furthest away from your boiler. Work your way through the radiators getting closer to the boiler, then go upstairs and repeat the process.

What happens when you bleed a radiator and no water comes out?

If no water or air comes out when you bleed the radiator, then the valve could be blocked with paint. … Insert the radiator key into the bleed valve and slowly turn it anti-clockwise (a quarter of a turn should be enough). You should hear a hissing sound as the air escapes.

Do you let all the water out when bleeding a radiator?

Yes, it is perfectly normal for water to escape when a radiator is bled. You’ll likely notice some drips emerging when initially turning the bleed screw in an anti-clockwise direction. And water would pour out once the air was released, if the valve was to be opened fully.

Which side of the radiator is the lockshield valve?

The lockshield valve, on the side of the radiator opposite the on/off valve, may be adjusted to balance the output of your heating system. The lockshield itself is the plastic cap that covers the valve to ensure that you don’t accidentally change the setting once you’ve adjusted it.

Which way do you turn a lockshield valve?

Close the lockshield valve on this radiator by turning it in a clockwise (right) direction. Once it is closed, open it up again by exactly a quarter of a turn.

Should lockshield valve be open or closed?

When the radiators are cool, switch the heating back on and go to the first radiator on your list. Turn the lockshield valve clockwise until it is closed and then open it by a quarter of a turn. Once the radiator has warmed up, take a temperature reading at the pipework leading to one of the valves (7).

What does a radiator bleed valve look like?

The valve can be located at the top of the radiator and to the side. It looks like a round hole with a square inside. When you insert the radiator key into the bleed valve, you will feel them lock together. Carefully turn the valve anti-clockwise – as the air begins to escape, you’ll hear a hissing sound.

Why is 1 radiator in my house cold?

Why is one radiator cold when the heating is on? One cold radiator usually indicates that either there is air in the system or there is a stuck valve within that radiator. … To check if the valve is stuck, you can remove the rotatable head on the TRV to reveal a raised pin beneath it.

Should automatic exhaust vent be left open?

Auto air vents did most for you. When air free tighten up. When they are left open any nitrogen accumulating because of corrosion is vented away, giving the impression all is fine, especially in a vented system. If nitrogen is being produced it will make parts of the system cold which raises alarm bells.

Where do you put an automatic air vent?

The Automatic Air Vent is installed on the heating system, typically within cylinder cupboards, to automatically bleed air from the heating system. The device consists of a polypropylene float connected to a simple valve.

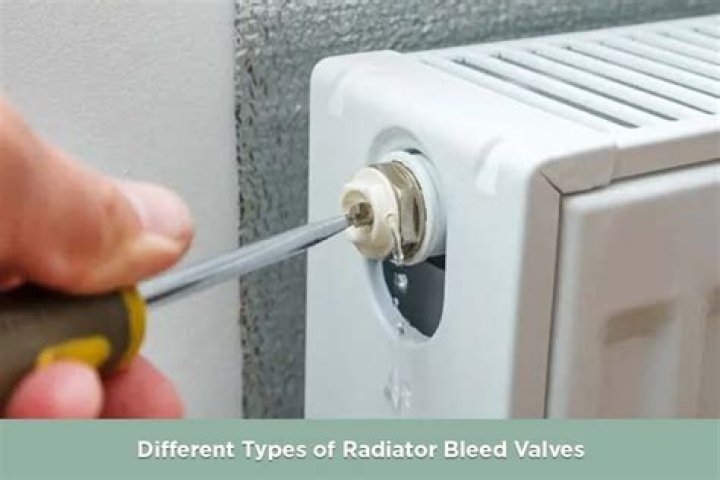

Can you use a screwdriver to bleed a radiator?

You can use a flathead screwdriver to bleed a radiator without a key. Place the flat head into the notches of the bleed valve. To bleed the radiator, turn anticlockwise to open the valve, and clockwise to close the valve. Remember to hold an old cloth or jug under the bleed valve to catch any escaping water.

Which side of radiator is the flow?

The flow of a radiator is typically on the left as you look at it stood up or attached to the wall.

Which way does the water flow through a radiator?

Top to bottom. Hot water enters at the top of the radiator, and then the cool water exits at the bottom (where it’s fed back into the engine). Top to bottom is more efficient, since you’re not working against natural convection.

What is a bidirectional radiator valve?

This is determined by the flow direction of the valve with some radiator valves being bi-directional which means that they can be installed on the flow or return pipes of the radiator horizontally or vertically.

Can you put radiator valves on the wrong way?

Some valves are bi-directional (meaning that water can flow through them in both directions) and others aren’t. If a non bi directional valve is fitted the wrong way round you will get a hammering noise from the valve when it is opening and closing. While this doesn’t cause any damage to the system it is very annoying.

Is the lockshield valve in the flow or return?

Systems are normally balanced by adjusting the lockshield valves usually fitted on the return side of each radiator. This ensures that each radiator circuit in the system has an equal pressure drop and receives the correct flow of hot water to heat the space in which it is fitted.

Does a radiator have a flow direction?

Pipes from one radiator lead to another and do not cross, so you orient the radiator the same way as the other radiators on the same floor are oriented. If you only have one radiator, you will need to get into your neighbor’s apartment to figure out which way the pipes are going.

Should both valves be open on a radiator?

You should open both of the valves on all of your system’s radiator when you are starting the radiator balancing process. You will most likely need to use pliers to open the lockshield valve. … Once this is done your radiator system should be fully balanced and your radiators should heat up evenly and efficiently.

Where are the valves on a radiator?

Valves are located on the bottom of the radiator where the pipes come into and exit the radiator. These are normally situated at the bottom left and right of the radiator, but some radiators have valves that come into the centre of the radiator, again at the bottom.

Can a radiator have two lockshield valves?

As long as there is other radiators on the system and they aren’t all closed down you shouldn’t have a problem.

Which radiator should you bleed first?

If your home has 2 floors you should begin bleeding the downstairs radiators first. It’s also advisable to start with the radiator which is furthest away from the boiler. Once you’ve bled all the downstairs radiators you move on to the upstairs, again beginning with the radiator which is furthest from the boiler.
