Why hot chamber die casting is preferable than cold chamber die casting?

Why hot chamber die casting is preferable than cold chamber die casting?

Because the melting pot is internal, hot chamber machinery is used for materials with lower melting points. The alloys are also limited to materials that won’t erode or dissolve the metal of the machine when put under heat or high pressure.

What are the advantages and disadvantages of hot chamber die casting?

The advantages of hot-chamber die casting include fast cycle times (up to 15 cycles per minute on average) and the convenience of melting the metal directly in the chamber/machine; a drawback to this process is its limitation to metals with low melting points only.

What are the advantages of hot chamber die casting?

Advantages of Hot Chamber Die Casting More environmental friendliness due to less wasted metal. More efficiency due to the machine containing an internal melting pot. Reduced porosity. Longer machinery life because only low-melting-point metals are used.

What is hot and cold chamber?

HOT AND COLD TEST CHAMBER. IEC Make Hot and Cold Test Chambers are designed for testing ,treating and storage of product and material where controlling of climate is necessary.

Do hot chamber die casting method is used to cast?

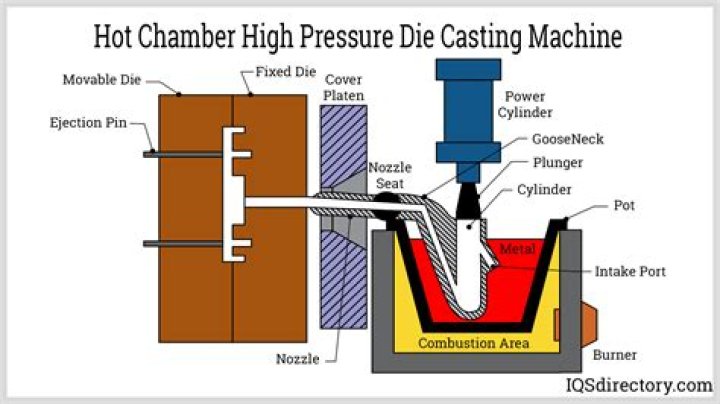

Hot chamber die casting machines are primarily used for zinc alloys, copper, lead, and other low melting point alloys. The injection mechanism of a hot chamber machine is immersed in a molten metal bath of a metal holding furnace. The die opens and the casting ejected.

Which casting operation uses permanent Mould?

Permanent Molds are used in a number of variants of casting processes like Gravity Die Casting (GDC), Low Pressure Die Casting (LPDC), High Pressure Die Casting (HPDC), Centrifugal Casting (CFC), Squeeze Casting (SC) and Continuous Casting (CC).

Why is aluminum alloy not used in hot chamber die casting?

The disadvantages of this system are that it is limited to use with low-melting point metals and that aluminium cannot be used because it picks up some of the iron while in the molten pool. Therefore, hot-chamber machines are primarily used with zinc-, tin-, and lead-based alloys.

Is core used in centrifugal casting?

Due to the application of centrifugal force, the casting is completely free from any porosity defect, denseness and strength are high and these castings have been proved as strong as forgings. Metal is filled due to centrifugal action hence hollow parts is produced without using core in this method.

What is cold chamber?

Unlike the hot chamber die casting process, cold chamber solves the corrosion problem by separating the melt pot from the injector components. In the cold-chamber process, metal is transferred by ladle, manually or automatically, to the shot sleeve.

What is hot chamber casting?

Hot chamber die casting is a type of die casting that uses alloys with low melting temperatures (i.e. Zinc, some Magnesium alloys). Using alloys with high melting temperatures would result in. damage to the gooseneck, nozzle, and other components.

What is the most widely used casting process?

Sand casting
Sand casting is the most common method used for metal casting.
