Why is my text not showing up in AutoCAD?

Reset custom settings. Reset AutoCAD to defaults (see How to reset AutoCAD to defaults). Note: The dialog that warns about missing fonts can be turned off. Check Hidden Messages Settings to be sure it is enabled (see How to enable dialog and message prompts that are not displayed anymore in AutoCAD).

How do I get my text box back in AutoCAD?

To Turn On or Off the Display of Text

Right-click in the drawing area, and choose Options.
In the Options dialog box, Display tab, under Display Performance, click or clear Show Text Boundary Frame Only, and click OK.
At the Command prompt, enter regen to regenerate the drawing, updating the display.

How do I see all text in AutoCAD?

Find and Replace Text in a Drawing

Click Annotate tab > Text panel > Find. Find.
Type the text that you want to find and press Enter.
Type the text string that you want to use to replace the found text.
Optional.
If necessary, expand the dialog box to set the search and text type options.
Do one of the following:

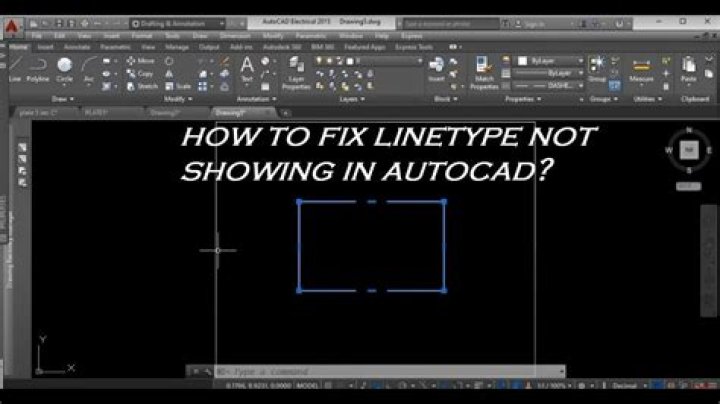

Why does my line disappear in AutoCAD?

Turn off High Quality Geometry and/or Smooth Line Display. For AutoCAD 2020 and newer, change to Basic Mode. Test turning off hardware acceleration to see if the issue can be resolved but still maintain acceptable drawing performance. Test running off different 3D Display Settings.

Why is annotative text not showing in viewport?

Adjust or remove annotation scale In the Properties palette, check if Annotative is set to Yes. If so, do one of the following: In paper space, select the viewport and change its scale to match that of the annotative object. In model space, select the object and add the viewport scale to the annotative scale list.

How do I reset my AutoCAD settings?

From the AutoCAD menu, click Preferences. In Preferences, click the Application tab. Click the Reset Application Options button. Click Reset AutoCAD.

How do I enable text in AutoCAD?

Solution:

Double-click the MTEXT or dimension text.
In the top right of the ribbon, click on More > Editor Settings.
Click Show Toolbar so that the option is selected.

How do I fix text in AutoCAD?

Clear and reapply the formatting to any malfunctioning MTEXT (Multiline text) objects.

Select the malfunctioning object.
Right-click and choose Mtext Edit.
Right-click the text and choose Select all.
Right-click the text and choose Remove formatting > Remove all formatting.
Reapply formatting as needed.

Where is find in AutoCAD?

Choose Annotate tab, Text panel, Find Text, and enter the text you want to find in the Ribbon’s text box. Then click the Find Text button or just press Enter.

Is there a Find function in AutoCAD?

The find and Replace Dialogue allows you to search your drawing for any text string, and replace it with another. You can choose just part of the drawing or the whole file and you can chose whether to search inside Blocks and Xrefs.

Where did my AutoCAD drawing go?

Solution: Check for and delete sparse or out-of-scale data by doing any of the following: Press CTRL + A to select all objects and check for far away grips. Enter QSEL and cycle through the object types, such as Line, to locate the actual drawing data.

Why some layers are not visible in AutoCAD?

Causes: Layers are frozen in the current layout viewport.
